Water cleaning system

for conveyor

Product overview

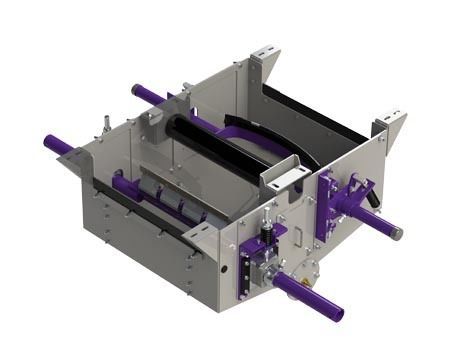

The Flexco Wash Box is designed to deliver superior cleaning efficiency where the conveyor must be kept very clean or where head-end cleaning is insufficient. Mounted on the return side of the belt, the unit is available in galvanized steel or 304 stainless steel and includes an adjustable hold-down roller.

Features and benefits

• Fully enclosed to clean the belt and contain wash water
• Hinged doors on each side for easy service and inspection
• Installs on existing cross members: drill-and-bolt fit minimizes installation and downtime
• Bolt-panel construction allows easy installation on existing frames, especially in confined spaces, and can be positioned along the conveyor as required
• Included stabilizer/hold-down roller provides proper tensioning for each cleaner
• Wet or dry cleaning: add return-side spray bars for an enhanced cleaning system
• Customizable: wash boxes can be custom-designed to meet jobsite requirements when standard offerings do not fit

Specifications

• Materials: galvanized steel or 304 stainless steel
• Belt widths: 24" to 60" (600 to 1500 mm)

Dimension table
Belt width (in.) | Belt width (mm) | Flush holes per belt width | Volume (ft³)
24 | 600 | 28 | 26.5
30 | 750 | 28 | 29.5
36 | 900 | 32 | 32.0
42 | 1050 | 32 | 34.0
48 | 1200 | 36 | 37.5
54 | 1350 | 36 | 40.0
60 | 1500 | 40 | 43.0

Dimensions, weights and volumes shown are nominal for a standard Flexco Wash Box and will be confirmed for each specific application. Flow per flush hole is approximately 0.13 gallons per minute at 60 psi.

Technical characteristics / specifications

• Materials: galvanized steel or 304 stainless steel
• Belt width range: 24"–60" (600–1500 mm)
• Fully enclosed design to contain wash water
• Hinged doors on both sides for service and inspection
• Installs on existing cross members with drill-and-bolt fit to minimize downtime
• Bolt-panel construction for installation in confined spaces
• Adjustable hold-down/stabilizer roller included
• Supports wet (with spray bars) or dry cleaning
• Customizable to meet site requirements
• Flow per flush hole: approx. 0.13 gal/min at 60 psi
• Model/series: Wash Box
