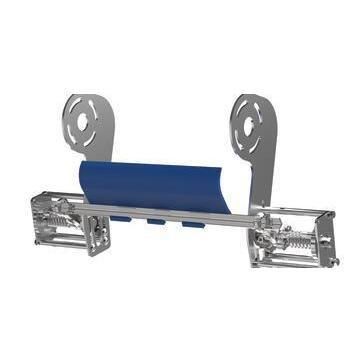

Metal conveyor belt pre-cleaner FGP-C

UHMW-PE

The FGP-C is a food-grade primary belt cleaner engineered to remove excess product from cleated plastic modular belts in food processing environments. Mounted under the head pulley, the cleaner uses a curved, rotating blade to maintain full contact with cleats and efficiently prevent carryback on cleated conveyors used in beef, pork, and poultry applications.

Key features and benefits

• Mounted at the underside of the head pulley with a curved blade (available in UHMW or Metal Detectable) that efficiently cleans excess product off the belt and cleats.
• The cleaner rotates so the blade can maintain full contact with the cleat, improving cleaning effectiveness for cleated modular belts.
• Snap-on blade easily attaches and removes from the structure, promoting quick assembly and repairs.
• Product has been engineered to prevent carryback in bulk meat processing.
• Available for plastic modular belts up to 36" (914 mm) wide with cleats up to 3" (76 mm) tall.
• Designed-to-order to ensure proper fit with your specific conveyor.

Variants and blade options

• FGP-C with UHMW Blade — blades available in blue or white; blade width range: 4" to 36" (102 to 914 mm).
• FGP-C with Metal Detectable Blade — for systems using metal-detecting sensors; blade width range: 4" to 36" (102 to 914 mm).

Ordering / design-to-order requirements

• Belt width
• Belt module pitch
• Side structure width — inside & outside
• Cleat height
• Cleat spacing
• Bearing type, size, model, and location
• Clearance distance forward and below discharge

Technical features / specifications

• Model: FGP-C
• Application: Primary cleaner for cleated plastic modular belts in food processing (beef, pork, poultry, proteins)
• Mounting location: Underside of head pulley
• Blade types: UHMW or Metal Detectable
• Blade width range: 4" to 36" (102 to 914 mm)
• Maximum belt width supported: up to 36" (914 mm)
• Supported cleat height: up to 3" (76 mm)
• Design: Rotating curved blade to maintain full contact with cleats; snap-on blade for quick removal and service
• Supply: Designed-to-order to ensure fit and clearance
