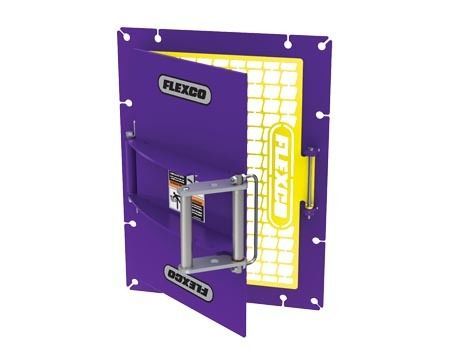

Inspection door INDR series

Product overview
Flexco Inspection Doors provide a visual inspection and service access point for conveyor chutes and enclosures. They also enable access for cleaning material buildup from belt cleaners and other conveyor components.

Features and benefits

• Adjustable latch mechanism — door seal tightness is changed by adjusting the nuts on the U-bolt
• Lockable design — accepts a padlock through the latch and door gusset to restrict access
• Silicone door seal — ensures a tight seal between door and mounting plate
• Dust-tight mounting — silicone sealant supplied for a dust-tight interface with chute or enclosure walls
• Options available with or without screen (screen models carry an "S" suffix)

General specifications

• Construction: powdercoat mild steel or 304 stainless steel
• Belt width compatibility: 24" to 60" (600 to 1500 mm)

Available products / sizes

• Inspection Door 12 x 12 in. (300 x 300 mm) — Ordering Number: INDR-1212; Item Code: 79303; Weight: 8.7 kg (19.2 lbs)
• Inspection Door 12 x 18 in. (300 x 450 mm) — Ordering Number: INDR-1218; Item Code: 79304; Weight: 10.7 kg (23.5 lbs)
• Inspection Door 18 x 24 in. (450 x 600 mm) — Ordering Number: INDR-1824; Item Code: 79305; Weight: 16.0 kg (35.2 lbs)
• Inspection Door 24 x 24 in. (600 x 600 mm) — Ordering Number: INDR-2424; Item Code: 79306; Weight: 19.4 kg (42.8 lbs)
• Inspection Door w/Screen 12 x 12 in. (300 x 300 mm) — Ordering Number: INDR-1212S; Item Code: 79307; Weight: 9.6 kg (21.2 lbs)
• Inspection Door w/Screen 12 x 18 in. (300 x 450 mm) — Ordering Number: INDR-1218S; Item Code: 79308; Weight: 11.8 kg (26.0 lbs)
• Inspection Door w/Screen 18 x 24 in. (450 x 600 mm) — Ordering Number: INDR-1824S; Item Code: 79309; Weight: 18.0 kg (39.7 lbs)
• Inspection Door w/Screen 24 x 24 in. (600 x 600 mm) — Ordering Number: INDR-2424S; Item Code: 79310; Weight: 21.9 kg (48.3 lbs)

Dimensions table
Door (opening) size (width x length) | Outer dimensions (width x length) | Height
12 x 12 in (300 x 300 mm) | outer: 16-5/16 x 15-3/4 in (415 x 400 mm) | 3-7/16 in (90 mm)
12 x 18 in (300 x 450 mm) | outer: 16-5/16 x 21-7/8 in (415 x 555 mm) | 3-7/16 in (90 mm)
18 x 24 in (450 x 600 mm) | outer: 22-5/16 x 27-3/4 in (570 x 705 mm) | 3-7/16 in (90 mm)
24 x 24 in (600 x 600 mm) | outer: 28-5/16 x 27-3/4 in (720 x 705 mm) | 3-7/16 in (90 mm)

Technical specifications

• Materials: powdercoat mild steel or 304 stainless steel
• Seal: silicone door seal; silicone sealant supplied for mounting plate interface
• Latch: adjustable U-bolt latch with padlock provision
• Options: screen models (S suffix) and non-screen models
• Typical applications: visual inspection, maintenance access and cleaning access for belt cleaners and other conveyor equipment
