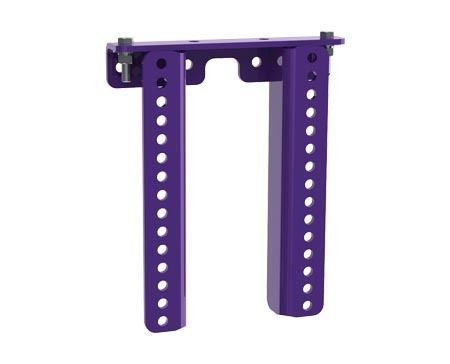

Heavy duty mounting bracket set RAPEK

Overview
Optional mounting kits provide adjustable brackets, plates and bars designed to attach conveyor cleaners and related accessories to the conveyor structure. They allow cleaners to be positioned and securely bolted into place for installation or replacement.

Product range

• 2-3/8" (60 mm) Pole Extender Kit — Ordering Number: RAPEK — Item Code: 77423 — URL: https://flexco.de/EN/Product/6328/2-3860mmPoleExtenderKit.htm
• 2-7/8" (73 mm) Pole Extender Kit — Ordering Number: MAPEK — Item Code: 76024 — URL: https://flexco.de/EN/Product/6327/2-7873mmPoleExtenderKit.htm
• Brush Cleaner Drop Brackets (2) — Ordering Number: MBCDBK — Item Code: 79536 — URL: https://flexco.de/EN/Product/6324/BrushCleanerDropBrackets2.htm
• Brush Cleaner Drop Brackets (incl. 2 ea) — Ordering Number: MBCDBK — Item Code: 79536 — Weight: 13.1 kg (28.9 lbs) — URL: https://flexco.de/EN/Product/3863/BrushCleanerDropBracketsincl.2ea.htm
• Long Mounting Bracket Kit — Ordering Number: SSTLMB — Item Code: 76072 — URL: https://flexco.de/EN/Product/6319/LongMountingBracketKit.htm
• Mounting Plate Kit (incl. 2 plates) — Ordering Number: MMPK — Item Code: 76537 — URL: https://flexco.de/EN/Product/6322/MountingPlateKitincl.2plates.htm
• MST Drop Brackets (2) — Ordering Number: MSTDB — Item Code: 79434 — URL: https://flexco.de/EN/Product/6323/MSTDropBrackets2.htm
• Optional Mounting Bar Kit — Ordering Number: MMBK — Item Code: 75830 — URL: https://flexco.de/EN/Product/6321/OptionalMountingBarKit.htm
• Optional Top Angle Kit — Ordering Number: SSTOTA — Item Code: 76073 — URL: https://flexco.de/EN/Product/6320/OptionalTopAngleKit.htm
• Standard Mounting Bracket Kit — Ordering Number: SSTSMB — Item Code: 76071 — URL: https://flexco.de/EN/Product/6316/StandardMountingBracketKit.htm
• Y-Type Heavy Duty Drop Brackets (2) — Ordering Number: YSTHDDBK — Item Code: 79850 — URL: https://flexco.de/EN/Product/6326/Y-TypeHeavyDutyDropBrackets2.htm
• Y-Type Standard Duty Drop Brackets (2) — Ordering Number: YSTDBK — Item Code: 79844 — URL: https://flexco.de/EN/Product/6325/Y-TypeStandardDutyDropBrackets2.htm

Benefits and features

• Adjustable brackets, plates and mounting bars to adapt to different conveyor profiles and cleaner types
• Multiple length and plate options to accommodate installation space and cleaner geometry
• Designed for straightforward bolting to conveyor structure to reduce installation and replacement time
• Compatible with a range of brush, blade and Y‑type cleaner assemblies (see product codes for specific fits)

Technical specifications

• Standard brackets: 13" W x 15-1/2" L (330 x 394 mm)
• Long brackets: 13" W x 21-1/2" L (330 x 546 mm)
• Mounting bars: 1-1/2" W x 16" L (38 x 400 mm) with (4) 5/8" (16 mm) tapped holes
• Mounting plates: 16" W x 32" L (400 x 800 mm) with (4) 5/8" (16 mm) holes
