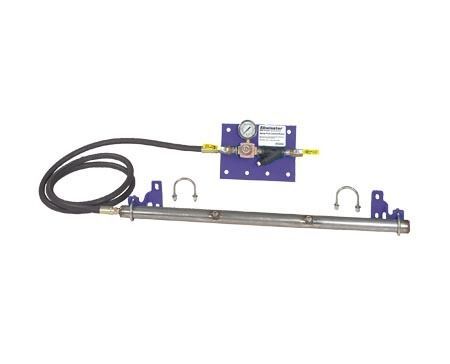

High-pressure cleaning lance SPCP

Product description
Specially designed to dislodge carryback fines embedded in the conveyor belt surface and to improve the cleaning performance of belt cleaners.

Features and benefits

• Spray nozzles set at a 45° angle to the belt for a high-pressure, low-volume spray
• Suspends fines in the spray, easing belt cleaning and extending blade life
• Easy-to-install system engineered for durability and minimal maintenance

Compatibility / Use
Standard-duty: for use with P-Type®, R-Type®, U-Type® (18"–60" / 450–1500 mm) and EZS2 cleaners. Heavy-duty: for use with H-Type®, U-Type® (72"–96" / 1800–2400 mm) and MSS, MHS and MDWS cleaners.

Technical specifications

• Stainless steel pole with powder-coated steel clamping brackets
• Spray nozzles spaced on 12" (300 mm) centers
• Flow: 0.98 gallons (3.7 L) per minute at 60 psi (414 kPa)
• Typically increases material moisture by less than 0.5%
• Maximum inlet pressure: 300 psi (2069 kPa)
• Typical pressure setting: 40–60 psi (276–414 kPa)
