Double-diaphragm pump P252 ATEX
for chemicalsfor food productsair

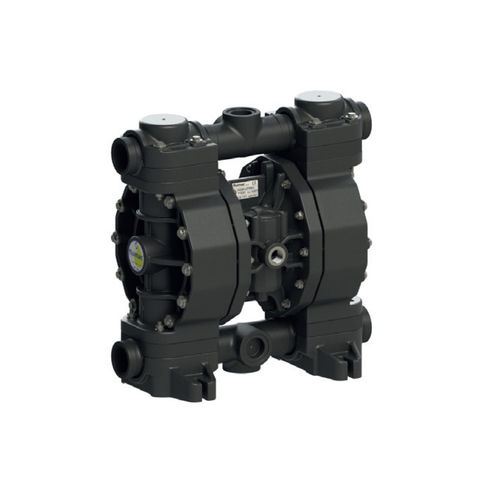

Double-diaphragm pump - P252 ATEX - FLUIMAC - for chemicals / for food products / air
Double-diaphragm pump - P252 ATEX - FLUIMAC - for chemicals / for food products / air
Add to favorites
Compare this product
Go to the FLUIMAC website for more information

Characteristics

Technology
double-diaphragm
Fluid
for chemicals, for food products, air
Operation
air-driven
Priming
self-priming
Mobility
stationary
Domain
for the chemical industry, for the food and beverage industry, for the pharmaceutical industry, for the petrochemical industry, for the mining industry, for the paper industry
Applications
metering, lift, suction
Material
aluminum, PP, PVDF
Protection level
ATEX
Other characteristics
flow, dry
Flow

Max.: 250 l/min
(66.04301 us gal/min)

Min.: 0 l/min
(0 us gal/min)

Pressure

Max.: 8 bar
(116.03 psi)

Min.: 0 bar
(0 psi)

Head

Max.: 80 m
(262'05" )

Min.: 0 m
(0'00" )

Fluid temperature

Max.: 95 °C
(203 °F)

Min.: -20 °C
(-4 °F)

Length

357 mm, 360 mm, 396 mm
(14 in, 14 in, 16 in)

Width

222 mm
(8.74 in)

Height

364 mm, 374 mm, 388 mm
(14.33 in, 14.72 in, 15.28 in)

Weight

15 kg, 16 kg, 20 kg
(33.07 lb, 35.27 lb, 44.09 lb)

Description

To determine the compressed air needed and the size of a FLUIMAC pump, two types of information are mandatory: The required flow rate of the fluid (Flow rate l/min) The total prevalence (Head H) By determining the flow rate of the fluid (Flow rate lt/min) and the head (Head H) it is possible to identify a point of intersection between the two. This point allows you to identify the quantity of compressed air necessary for the correct functioning of this type of pump; to do this it is necessary to follow the blue curve to the left. Then following the closest green curve you can see the air consumption.
