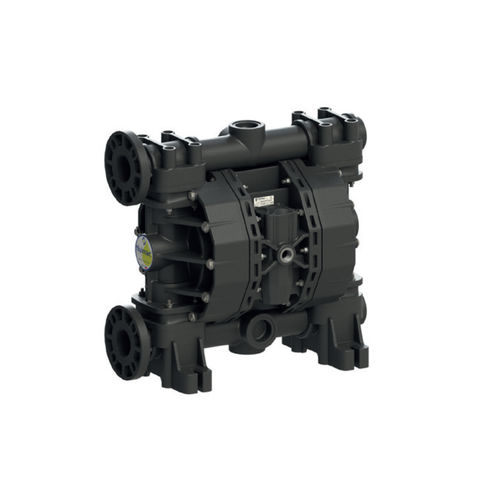

Double-diaphragm pump P700 ATEXfor chemicalsfor food productsair-driven
Add to favorites
Compare this product
Characteristics
- Technology
- double-diaphragm
- Fluid
- for chemicals, for food products
- Operation
- air-driven
- Priming
- self-priming
- Mobility
- stationary
- Domain
- for the chemical industry, for the pharmaceutical industry, for the food and beverage industry, for the petrochemical industry, for the mining industry, for the paper industry
- Applications
- metering
- Material
- aluminum, PP, PVDF
- Protection level
- ATEX
- Flow
Max.: 700 l/min
(184.92044 us gal/min)Min.: 0 l/min
(0 us gal/min)- Pressure
Max.: 8 bar
(116.03 psi)Min.: 0 bar
(0 psi)- Head
Max.: 80 m
(262'05" )Min.: 0 m
(0'00" )- Fluid temperature
Max.: 95 °C
(203 °F)Min.: -20 °C
(-4 °F)- Length
487 mm, 595 mm
(19 in, 23 in)- Width
345 mm
(13.58 in)- Height
567 mm, 570 mm
(22.32 in, 22.44 in)- Weight
33 kg, 40 kg, 53 kg
(72.75 lb, 88.18 lb, 116.84 lb)
Description
To determine the compressed air needed and the size of a FLUIMAC pump, two types of information are mandatory:
The required flow rate of the fluid (Flow rate l/min)
The total prevalence (Head H)
By determining the flow rate of the fluid (Flow rate lt/min) and the head (Head H) it is possible to identify a point of intersection between the two. This point allows you to identify the quantity of compressed air necessary for the correct functioning of this type of pump; to do this it is necessary to follow the blue curve to the left. Then following the closest green curve you can see the air consumption.
