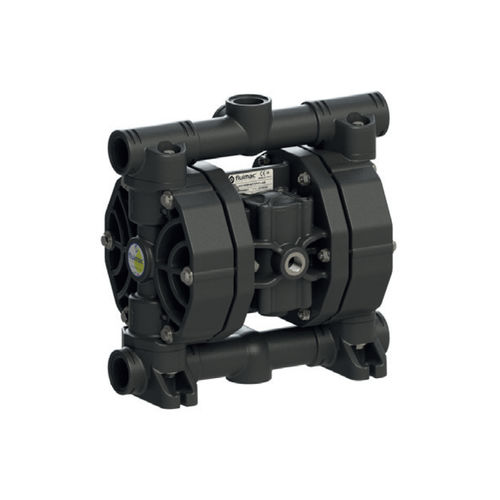

Diaphragm pump P90 ATEXfor chemicalsfor food productsair
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Fluid
- for chemicals, for food products, air
- Operation
- pneumatic
- Priming
- self-priming
- Mobility
- stationary
- Domain
- industrial
- Applications
- lift, suction
- Other characteristics
- flow, dry
- Flow
Min.: 0 l/min
(0 us gal/min)Max.: 100 l/min
(26.41721 us gal/min)- Pressure
Min.: 0 bar
(0 psi)Max.: 8 bar
(116.03 psi)- Head
Min.: 0 m
(0'00" )Max.: 80 m
(262'05" )- Fluid temperature
Min.: -20 °C
(-4 °F)Max.: 95 °C
(203 °F)- Length
247 mm, 293 mm
(10 in, 12 in)- Width
176 mm
(6.93 in)- Height
280 mm
(11.02 in)- Weight
5 kg, 6 kg, 7 kg, 9 kg
(11.02 lb, 13.23 lb, 15.43 lb, 19.84 lb)
Description
To determine the compressed air needed and the size of a FLUIMAC pump, two types of information are mandatory:
The required flow rate of the fluid (Flow rate l/min)
The total prevalence (Head H)
By determining the flow rate of the fluid (Flow rate lt/min) and the head (Head H) it is possible to identify a point of intersection between the two. This point allows you to identify the quantity of compressed air necessary for the correct functioning of this type of pump; to do this it is necessary to follow the blue curve to the left. Then following the closest green curve you can see the air consumption.
