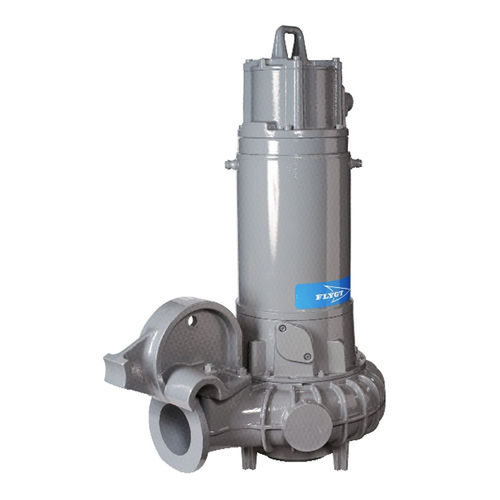

Impeller pump C 3231

wastewaterelectricsubmersible

WASTEWATER CHANNEL IMPELLER PUMP The classic C-pumps with shrouded impellers have proven themselves over the years and are designed to handle different types of media. The C 3231 two-channel impeller is available in cast iron or duplex stainless steel with excellent flow passing properties that reduce clogging in the impeller channel. A narrow gap between the interchangeable wear rings ensures high efficiency. ROBUST AND RELIABLE DESIGN The short shaft overhang reduces shaft deflection and increases seal and bearing life Motor is designed for submersible use. Heat is concentrated to the stator core for improved cooling properties. Martensitic stainless steel shaft for maximum strength and corrosive resistance Optional duplex stainless steel shaft for superior corrosive resistance Double mechanical seal system. Two sets of mechanical shaft seals work independently to provide double security. They are available in Tungsten carbide (WCCR) or Silicone carbide (SiC) depending on pumped media. Motor cable SUBCAB ® specially developed for submersible use Cable entry with double elastomer seal grommets for double security
