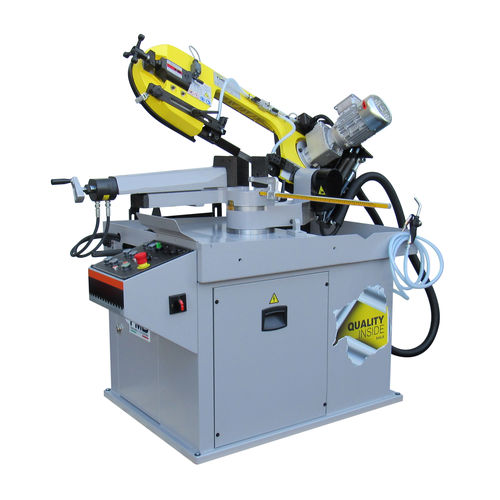

Band saw LUNAR

for metalsfor sheet metalsemi-automatic

Semiautomatic band saw machine to cut from 0° to 60° right. Head structure made of high-strength special aluminium casting alloy. Reduction gearbox with case-hardened, ground, helical gears lubricated with long-life grease. Output shaft of the reduction gearbox Ø 40 mm, with motor drive wheel coupling by keyless friction hub. 2-speed Version 35/70 m/min - VHZ version 16 ÷ 120 m/min. Head feed system with hydraulic cylinder and descent speed controlled by a flow control valve mounted at the front. Dynamometric blade tension device. Adjustable blade guide with carbide inserts and guide bearings. Blade cleaning brush integrated into the head cover. Broken blade endswitch. Material clamping vice with manual positioning and hydraulic locking cylinder Head rotation with mechanical stops at 0°, 45° and 60°. Graduated scale for angle reading and sturdy locking lever. Heavy-duty welded steel base with panels of differentiated thickness. Loading side roller with sturdy two-position support. Millimetric measuring rod with sturdy length stop for cutting lengths 0÷600 mm. 20-litre coolant tank with electric pump for blade guide lubrication and cooling. Hydraulic unit integrated in the machine base for controlling the head and vice cylinders. Ergonomic working table and control panel. Electrical cabinet with 24VDC auxiliary voltage, operator controls, and lockable main switch. Full protection against overvoltage and short circuits. Protection level IP 55. Control panel with buttons and switches for blade speed selection, head movement control, coolant selection, and indicator lights for alarms. Sensor that memorises the head starting position. Machine alarms display and self-diagnosis function. Line voltage: 400V/50Hz/3Ph standard (230V/50Hz/1Ph-230V/50Hz/3Ph-110V/60Hz/1Ph-220V/60Hz/3Ph-440V/60Hz/3Ph-575V/60Hz/3Ph available). Machine colours: yellow RAL 1018 and grey RAL 7036.
