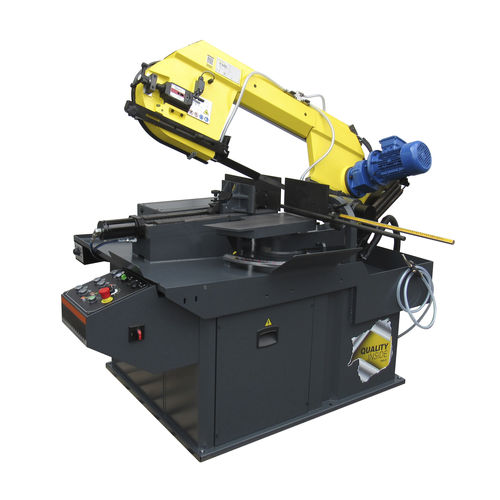

Band saw GALACTIC

horizontalfor metalssemi-automatic

Semiautomatic band saw machine to cut from 0° to 60° right. Head structure in 3 parts: special aluminium alloy, steel and cast iron. Reduction gearbox with case-hardened, ground, helical gears lubricated with long-life grease. VHZ electronic speed variator 16÷120 m/min. Connection of the motor drive wheel to a flange assembly with paired tapered roller bearings. Head feed system with hydraulic cylinder and descent speed controlled by a flow control valve mounted at the front. Dynamometric blade tension device. Adjustable blade guide with carbide inserts and guide bearings. Idle cleaning brush with easy and practical adjustment. Broken blade endswitch. Manual positioning material cast iron vice with fast rack system and hydraulic locking cylinder. Ergonomic working table and control panel. Head rotation with mechanical stops at 0°, 45° and 60°. Graduated scale for angle reading and sturdy locking lever. Loading side roller with sturdy two-position support. Heavy-duty welded steel base with panels of differentiated thickness. Millimetric measuring rod with sturdy length stop for cutting lengths 0÷600 mm. Hydraulic unit integrated in the machine base for controlling the head and vice cylinders. 80-litre coolant tank with electric pump for blade guide lubrication and cooling. Electrical cabinet with 24VDC auxiliary voltage, operator controls, and lockable main switch. Full protection against overvoltage and short circuits. Protection level IP 55. Control panel with buttons and switches for blade speed selection, head movement control, coolant selection, and indicator lights for alarms. Line voltage: 400V/50Hz/3Ph standard (230V/50Hz/1Ph-230V/50Hz/3Ph-110V/60Hz/1Ph-220V/60Hz/3Ph-440V/60Hz/3Ph-575V/60Hz/3Ph available). Machine colours: yellow RAL 1018 and grey RAL 7036.
