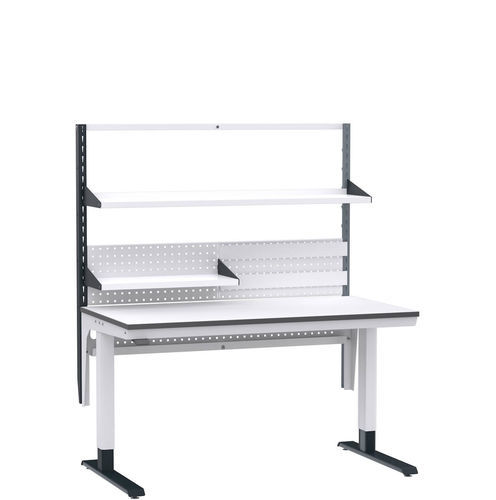

Assembly workstation Velar Prime ESD

for laboratoryindustrialfor control rooms

Overview
The Velar Prime ESD is an electric height-adjustable ESD workstation designed for EPA areas and environments requiring electrostatic discharge protection. Suitable for electronics assembly, quality control, laboratories and packing stations.

Construction & ergonomics

• Electric height adjustment: 715–1215 mm for seated or standing work; intuitive control panel with memory for up to 4 presets.
• C-leg steel frame with antistatic powder coating; color options RAL 7035, RAL 7016 or MIX.
• Load capacity: up to 160 kg; collision detection sensors compliant with DIN EN 14738.

Worktop and accessories

• ESD worktop: 25 mm laminated particleboard with melamine finish, compliant with IEC 61340-5-1; easy to clean.
• Shelves: 1 full-length + 1 half-length, depth 300 mm (optional 400 mm), tilt 0°/10°/15°, 15 kg capacity each.
• Perforated rear panel: EU grid, 300 mm height for tool mounting.
• Container rail: half-length, 10 kg capacity; optional drawer module (up to 40 kg) and LED ESD lighting (≈5000 K, up to 4778 lm).

Dimensions & options

• Available lengths: 1200 / 1500 / 1600 / 1800 / 2000 mm; widths: 700 / 800 mm.
• Height range: 715–1215 mm; worktop thickness: 25 mm.
• Frame colors: RAL 7035 / RAL 7016 / MIX 7016/7035.

Applications

• Designed for electronics manufacturing, PCBA assembly, laboratories and R&D departments requiring reliable ESD protection and ergonomic workstations.

Delivery & accessories

• Fast delivery in Europe and worldwide. Wide range of ESD accessories available: lighting, drawers, shelves, container rails.
• Warranty: 5 years on metal parts; sustainable packaging and certified wood components where applicable.

Technical specifications

• Height adjustment: Electric, 715–1215 mm
• Load capacity: 160 kg
• Worktop: Laminated particleboard, melamine finish, 25 mm (IEC 61340-5-1)
• Frame: Steel, antistatic powder coating
• Shelves: Full + half, 300 mm (option 400 mm), 0°/10°/15°, 15 kg each
• Perforated rear panel: 300 mm, EU grid
• Container rail: half-length, 10 kg
• Optional drawer module capacity: up to 40 kg
• LED lighting: ≈5000 K, up to 4778 lm
• Warranty: 5 years on metal parts
