Assembly workstation Velar Ultra

for workshopsfor laboratoryindustrial

Description

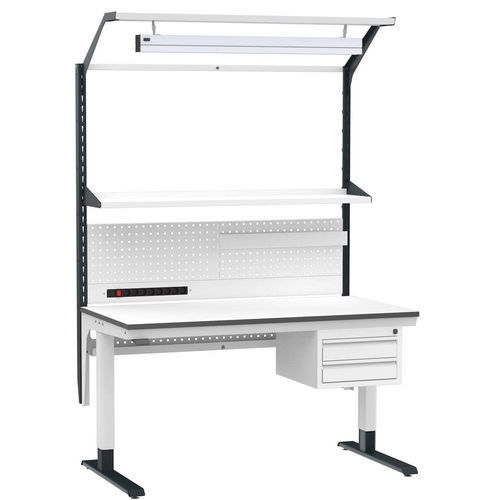

Velar Ultra ESD is an electrostatic-discharge protected workstation engineered for electronics assembly, laboratories and technical EPA areas. It provides electrically adjustable height, a C-foot steel frame, dissipative worktop and a modular range of ESD-compatible accessories to support ergonomic, safe and efficient workflows.

Structure and ergonomics

• Electric height adjustment: 715–1215 mm for comfortable sitting or standing work.
• C-foot steel frame with powder coating available in RAL 7035, RAL 7016 or mixed finish.
• Load capacity: 160 kg for the worktop.
• Complete ESD bonding: metal parts connected for safe electrostatic discharge.

Worktop and accessories

• Dissipative worktop: 25 mm thick laminate, surface resistance 10⁶–10⁸ Ω, scratch and chemical resistant.
• Upper shelf: 300 mm depth (optional 400 mm), tilt options 0°/10°/15°, load 15 kg.
• Perforated back panel: 300 mm height, EU grid format for accessory mounting.
• Power strip: 7 outlets (Type E), master switch and surge protection.
• LED lighting: microprismatic, 5000 K, Ra > 80, 3822–4778 lm, 50 000 h life.
• Drawer module: available 1/2/3 drawers, total capacity 40 kg.

Dimensions

• Lengths: 1200 / 1500 / 1600 / 1800 / 2000 mm
• Widths: 700 / 800 mm
• Height range: 715–1215 mm
• Worktop load capacity: 160 kg

Applications
Ideal for EPA zones, electronics assembly, repair benches and laboratories where ESD protection, ergonomics and modularity are required. Fast delivery across Europe. Optional accessories: LED, shelves, power strips and ESD drawer units.

Technical specifications

• Brand: FORISON
• Product name: Velar Ultra ESD
• Height adjustment (electric): 715–1215 mm
• Frame: C-foot steel with powder coating (RAL 7035 / RAL 7016 / MIX)
• Load capacity (worktop): 160 kg
• Worktop: dissipative laminate 10⁶–10⁸ Ω, 25 mm
• Upper shelf: 300 mm (optional 400 mm), inclinations 0°/10°/15°, 15 kg
• Perforated panel: 300 mm height (EU grid)
• Power strip: 7× Type E outlets, master switch, surge protection
• LED lighting: 5000 K, Ra > 80, 3822/4778 lm, 50 000 h
• Drawer module: 1/2/3 drawers, total 40 kg
• Available colors: RAL 7035 / RAL 7016 / MIX
• Standards: ESD IEC 61340-5-1; collision protection DIN EN 14738
• Warranty: 5 years on metal components
