Laboratory workstation Velar Max

industrialESDergonomic

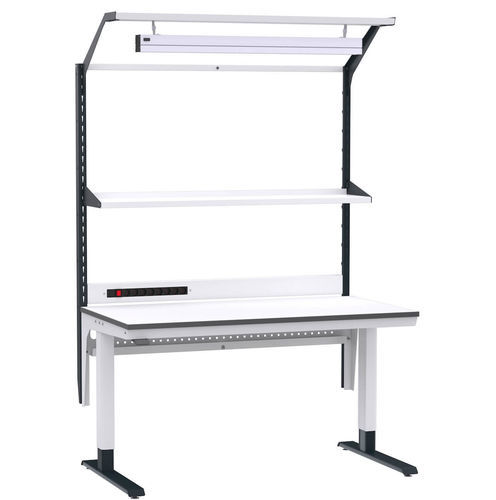

Velar Max ESD Electric Workstation: Advanced ESD Protection with Electric Height Adjustment
The Velar Max ESD Electric Workstation is an ergonomic industrial workstation designed for electronics production, laboratories and EPA zones. It combines a C‑foot steel frame with electrically adjustable height to support seated and standing workflows while ensuring ESD control across the work surface.

Key features

• Electric height adjustment: 715–1215 mm for seated and standing use.
• Load capacity: 160 kg suitable for components, tools and light equipment.
• Memory presets: up to 4 saved heights for repeatable setups.
• Collision protection: integrated sensors compliant with DIN EN 14738.
• ESD compliance: materials and coatings meeting IEC 61340-5-1 for use in EPA zones.

Durability and eco-friendly design

• Steel C‑foot frame with antistatic powder coating for long service life.
• Worktop: ESD‑dispersive melamine‑coated particleboard, 25 mm thickness, chemical- and scratch-resistant.
• Packaging: sustainable, plastic‑free packaging with FSC and PEFC certification.

Customizable accessories

• Shelves: depths 300 or 400 mm, tilt options 0°/10°/15°, shelf capacity 15 kg.
• Perforated back panels for tool organization and cable routing.
• LED lighting: microprismatic 5000K for uniform illumination.
• Power modules: integrated options with seven Type E outlets, surge protection and main switch (Power version).
• IT accessories: monitor arms, keyboard trays and modular fittings for tailored setups.

Technical specifications

• Height adjustment: Electric, 715–1215 mm.
• Load capacity: 160 kg.
• Worktop example dimensions: 1190 x 690 mm, thickness 25 mm (multiple sizes available).
• Frame material: Powder‑coated steel with ESD properties.
• Surface material: ESD‑dispersive melamine‑coated particleboard.
• Frame color options: RAL 7035 (Light Grey), RAL 7016 (Anthracite) or mix.
• Memory presets: Up to 4 positions.
• Standards: IEC 61340-5-1 (ESD), DIN EN 14738 (collision protection).
• Warranty & delivery: 5 years on metal components; typical lead time 2–3 weeks depending on configuration and location.
