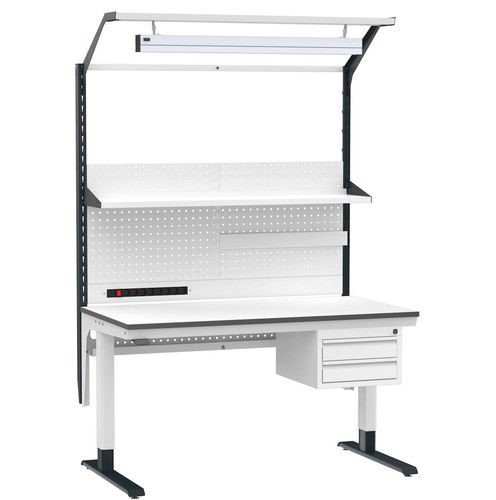

Industrial workstation Velar Infinite

electronicergonomicmodular

Overview
Velar Infinite ESD is an electrically height-adjustable ESD workbench engineered for EPA zones, laboratories, electronics assembly, logistics and R&D. It combines ergonomic electric adjustment, a modular C-type steel frame and comprehensive ESD equipment for professional environments.

Construction and ESD protection

• Electric height adjustment: 715–1215 mm for seated or standing work.
• C-type steel frame with conductive ESD powder coating; color options RAL 7035, RAL 7016 or MIX 7016/7035.
• Load capacity: up to 160 kg, providing a stable ESD workstation solution.

ESD worktop and accessories

• ESD worktop: laminated, 25 mm thick, antistatic surface compliant with IEC 61340-5-1; durable and easy to clean.
• Full-length ESD upper shelf: depth 300 mm (optional 400 mm), tilt angles 0°, 10°, 15°, load 15 kg.
• Perforated back panel: EU format, 600 mm height for mounting ESD accessories.
• Power strip: 7 type F sockets with main switch and surge protection.
• LED lighting: microprismatic, 5000 K, Ra >80, luminous flux 3822 / 4778 lm, lifetime 50,000 h.
• Lockable drawer unit: standard 2 drawers (optional 1 or 3), total capacity 40 kg.

Dimensions and options

• Lengths: 1200 / 1500 / 1600 / 1800 / 2000 mm.
• Worktop widths/depths: 700 / 800 mm.
• Height range: 715–1215 mm (electric adjustment).

Applications
Suitable for PCBA assembly, electronics testing, laboratories and R&D areas requiring reliable ESD protection and ergonomic workstations.

Additional information

• Modular design with a wide range of ESD accessories and custom configuration options.
• Typical lead time in Europe: 2–3 weeks (manufacturer indication).
• Warranty: 5 years on metal components.

Technical specifications

• Model: Velar Infinite ESD
• Manufacturer / Brand: FORISON
• Height adjustment range: 715–1215 mm
• Load capacity: 160 kg
• Frame: C-type steel frame with conductive ESD powder coating
• Colors: RAL 7035, RAL 7016 or MIX 7016/7035
• Worktop material & thickness: laminated, 25 mm, antistatic (IEC 61340-5-1)
• Upper shelf depth: 300 mm (optional 400 mm); tilt 0°, 10°, 15°; capacity 15 kg
• Perforated panel height: 600 mm (EU format)
• Power sockets: 7 type F outlets, main switch and surge protection
• LED lighting: microprismatic, 5000 K, Ra >80, 3822 / 4778 lm, lifetime 50,000 h
• Drawer unit: lockable, 2 drawers (options 1 or 3), total capacity 40 kg
• Available sizes: combinations from 1200x700 to 2000x800
• Standard: IEC 61340-5-1 (ESD)
• Warranty: 5 years
• Lead time: approx. 2–3 weeks (manufacturer indication)
