Assembly workstation Velar Flex ESD

for laboratoryindustrialfor control rooms

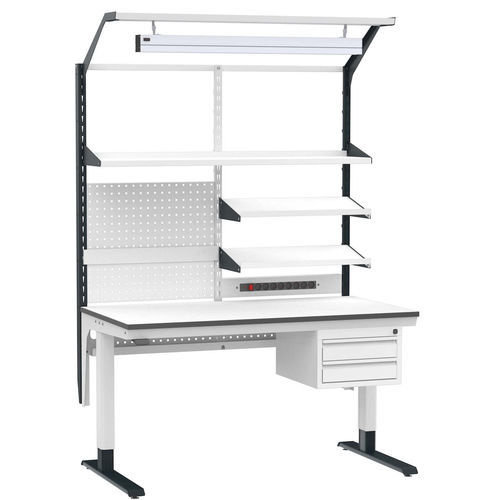

Velar Flex ESD Electric Workstation
The Velar Flex ESD Electric Workstation is an ergonomic, electrically adjustable workbench engineered for environments requiring electrostatic discharge (ESD) protection. Built on a C-foot steel frame, the workstation integrates shelving, a perforated back panel, a container rail, a power strip, a lockable drawer module and microprismatic LED lighting to optimise organisation and safety.

Key Features

• Load capacity: 160 kg with even weight distribution.
• Height adjustment: Electric range 715–1215 mm for ergonomic sitting and standing positions.
• Memory function: Stores up to four height presets via the control panel.
• Collision protection: Integrated sensors with auto-stop, compliant with DIN EN 14738.
• ESD compliance: Materials and finish suitable for EPA zones; meets IEC 61340-5-1.
• Sustainable design: Uses FSC and PEFC certified materials and eco-friendly powder-coated steel.

Included Equipment

• Shelves:
  • One full-length and two half-length shelves.
  • Depth: 300 mm standard, optional 400 mm.
  • Tilt angles: 0°, 10°, 15°.
  • Load per shelf: 15 kg.
• Power strip: 7 type-F sockets with main switch and surge protection.
• LED lighting: Microprismatic, 5000K; up to 3822 lm (≤1600 mm) or 4778 lm (wider models).
• Drawer module: Two lockable drawers standard (optional 1 or 3); total drawer load 40 kg; drawer dims 336 × 491 × 91 mm.
• Perforated back panel: UE-standard grid, height 300 mm.
• Container rail: Half-length rail supporting storage bins, load capacity 10 kg.

Expandability and Modular Design

• Supports additional shelves and LED modules.
• Optional power modules and supplementary power strips.
• IT mounts: monitor and keyboard brackets available.
• Perforated panels and accessories for tool organisation.

Sustainability

• Use of FSC and PEFC certified materials where applicable.
• Plastic-free, recyclable packaging.
• Eco-friendly powder-coated finish for long service life and easy maintenance.

Warranty

• 5-year warranty on all metal components.

Technical Specifications

• Model: Velar Flex
• Worktop dimensions (example): 1190 × 690 mm (other sizes available).
• Worktop thickness: 25 mm, melamine-coated, stain- and scratch-resistant.
• Height adjustment (worktop): electric 715–1215 mm.
• Total height (including shelving/back): 2168–2668 mm.
• Frame material: Powder-coated steel, C-foot structure. Colors: RAL 7035 / RAL 7016.
• Worktop load capacity: 160 kg (even distribution).
• Shelf depth: 300 mm standard (optional 400 mm); shelf tilt 0°/10°/15°; shelf load 15 kg each.
• Drawer module: 2 lockable drawers standard; total drawer load 40 kg; drawer dims 336 × 491 × 91 mm; optional 1 or 3 drawers.
• Power strip: 7 × type-F sockets with main switch and surge protection.
• LED lighting: Microprismatic, 5000K; luminosity up to 3822 lm (≤1600 mm) or up to 4778 lm (wider).
• Perforated back panel: UE-standard grid, 300 mm height.
• Container rail capacity: 10 kg (half-length rail).
• Memory function: stores up to 4 height presets.
• Collision protection: DIN EN 14738.
• ESD compliance: IEC 61340-5-1 (suitable for EPA zones).
• Certifications: FSC and PEFC where applicable.
