Industrial workstation Velar Edge
for laboratoryassemblyergonomic

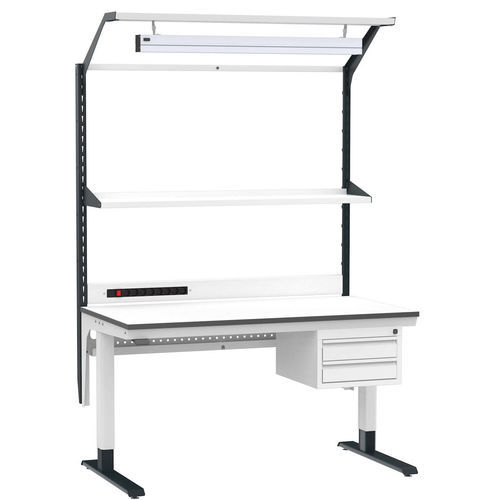

Industrial workstation - Velar Edge - Forison - for laboratory / assembly / ergonomic
Industrial workstation - Velar Edge - Forison - for laboratory / assembly / ergonomic
Add to favorites
Compare this product
Go to the Forison website for more information

Characteristics

Applications
industrial, for laboratory, assembly
Other characteristics
ergonomic, height-adjustable, ESD, electric

Description

Overview
  • Velar Edge ESD is an electrically height-adjustable workstation for EPA/ESD-safe areas, laboratories and electronic assembly lines. It integrates electric height adjustment (715–1215 mm), a C-foot steel frame and ESD-compliant surfaces for professional use.


Construction & ergonomics
  • Electric height adjustment: 715–1215 mm — suitable for seated and standing work.
  • C-foot frame: powder-coated steel with antistatic finish; color options RAL 7035 / RAL 7016 or mixed RAL7035/7016.
  • Load capacity: 160 kg evenly distributed; adjustable feet for leveling and improved stability.


ESD surface & accessories
  • Worktop: 25 mm conductive melamine-faced chipboard compliant with IEC 61340-5-1.
  • Shelf: full-length shelf depth 300 mm (optional 400 mm), adjustable tilt 0° / 10° / 15°, shelf load 15 kg.
  • Power strip: 7 type-E sockets with main switch and surge protection.
  • LED lighting: microprismatic, 5000 K, Ra>80, lifespan approx. 50,000 hours; adjustable angle.
  • Drawer module: standard 2 lockable drawers (options 1 or 3), total drawer capacity 40 kg; drawer dimensions 336 × 491 × 91 mm each.


Technical data
  • Lengths available: 1200 / 1500 / 1600 / 1800 / 2000 mm.
  • Widths available: 700 / 800 mm.
  • Height range: 715–1215 mm.
  • Worktop thickness: 25 mm.
  • Load capacity: 160 kg.


Applications
  • Designed for PCBA assembly stations, test benches, laboratories and R&D where ESD protection is required.
  • Modular options: ESD LED lighting, conductive power and drawer options, grounding kits, monitor and keyboard mounts; quick delivery across Europe.


Characteristics / technical specifications
  • Model: Velar Edge ESD
  • Height adjustment: electric, 715–1215 mm
  • Worktop material: conductive melamine-faced chipboard, 25 mm
  • ESD standard: IEC 61340-5-1
  • Load capacity: 160 kg (evenly distributed)
  • Available sizes (L x W): 1200 / 1500 / 1600 / 1800 / 2000 mm × 700 / 800 mm
  • Colors: RAL 7035, RAL 7016, mixed RAL7035/7016
  • Power strip: 7 × Type E with main switch and surge protection
  • LED: microprismatic 5000 K, Ra>80, ~50,000 h
  • Drawer options: 1 / 2 / 3 lockable drawers; total 40 kg
  • Frame: C-foot powder-coated steel
