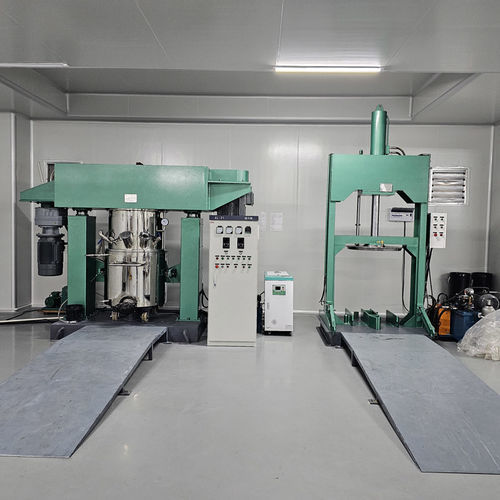

Planetary mixer

verticalbatchcontinuous

The rotating planetary frame of double planetary mixer drives the mixing shaft and the dispersion shaft to revolve around the container axis and perform rotational motion. It exerts strong shearing and kneading forces on the materials at high speed, so that the materials are dispersed and mixed evenly. The scraper installed on the planetary frame. It is close to the cylinder wall and continuously scrapes the material off the cylinder wall. The inner wall of cylinder is precisely lathe-machined and mirror-polished to ensure that the scraper can scrape off all the materials adhering to the container wall without leaving any residue. The blades can also be equipped with scrapers to scrape off the bottom materials to ensure that there is no mixing dead corner and the mixing effect is good. Material Viscosity ≤ 10,000,000 cps Application Industries Applicable to the dispersion and mixing of materials in coatings, putties, adhesives, energy, electronics, medicine, cosmetics, food and other industries. Applicable Materials Battery slurry, solder paste, ceramic slurry, silicone ink, sealant, structural adhesive, ointment and other slurries with a viscosity of less than 10,000,000cps and a solid content of less than 90%. High Mixing Efficiency and Wide Application Range - Easy and Safe to Operate - No Dead Corner in Mixing - Strong Non-standard Double planetary mixer subjects the material to strong shearing and kneading to achieve the purpose of rapid mixing. Common stirring paddles include folding blade type and twistes type, and can also be equipped with scrapers for scraping the wall and bottom, and one or more dispersing discs.
