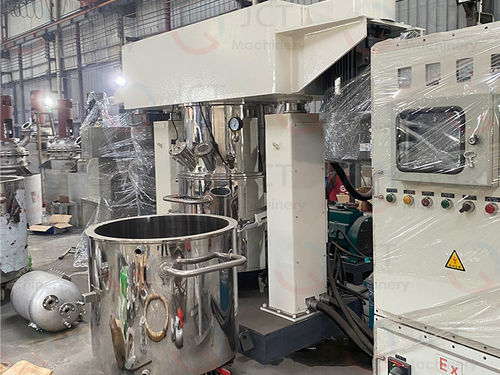

Planetary mixer XJB-600

mobilebatchgas/liquid

Product overview
Double planetary mixer for dog food XJB-600 is a multifunctional industrial mixer combining planetary stirring and wall-scraping mixing to ensure uniform dispersion of multi-component dog food formulations. It is suitable for wet and semi-wet recipes, high-meat formulas and mixes containing fats and functional additives. The unit is designed for integration with extrusion and molding production lines.

Suitable dog food and feed types

• Wet food / semi-wet food
• High-meat dog food formulas
• Functional dog foods (probiotics, vitamins, minerals)
• Meat pulp, bone paste, grain powder, hydrolyzed proteins
• Fats, animal fat, palatability enhancers

Typical application process stages

• Raw material premixing (meat pulp + water + powder)
• Uniform dispersion of nutritional additives
• Wet mixing and transfer to extrusion or molding
• Stabilization mixing in premium formulations

Technical parameters (reference)
Product model: XJB-600
Cylinder full volume: ~620 L
Inner cylinder: φ950 × 850 mm, wall thickness 10 mm, polished SS304 with water-cooled jacket
Motor: 37 kW standard motor
Inverter: 37 kW vector inverter
Reducer: Helical gear reducer
Mixing system: 3 low-speed paddle agitators with bottom scraping + 1 wall-scraping knife; simultaneous revolution and rotation for uniform dispersion; contact materials SS304 + F4
Shaft seal: Mechanical seal
Cylinder cover: DN250 quick-opening feed port; two DN120 sight windows; ports for feeding, venting and temperature measurement with dovetail groove and sealing rings
Discharge: 3" (DN80) plunger-type hydraulic under-discharge; dead-center free
Speeds: Planetary carrier 0–28 rpm (VFD); mixing shaft 0–75 rpm (VFD)
Mobility: 4 heavy-duty swivel casters
Structure: Gantry type
Control: Floor control cabinet with main control and emergency stop; synchronized control of low-speed mixing motor and circulation pump; VFD control for high-speed motor; hydraulic pump and vacuum pump control; visual indicators; digital temperature display; current and voltmeter

Additional information
The XJB-600 is built with food-contact SS304 components and is intended for industrial pet food production where uniform mixing of viscous, multi-component recipes and integration with downstream extrusion or molding equipment are required.
