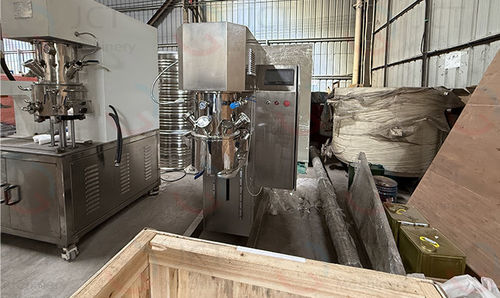

Planetary mixer

bottom-entrybatchfor liquids

Product overview
The double planetary mixer for personal skincare products is a high-efficiency mixing unit engineered for medium- to high-viscosity formulations used in cosmetics and personal care production. Two planetary agitator groups rotate on their own axes while revolving around the mixing cylinder center, ensuring intensive mixing, dispersion and homogenization. The design supports processes such as emulsification, homogenization, dispersion and vacuum degassing, delivering fine, stable textures suitable for creams, lotions and gels.

Working principle

• Two planetary blades rotate around their own axes.
• Simultaneously, the agitator groups revolve around the cylinder center.
• The combined motion covers all cylinder zones, prevents dead zones and ensures uniform mixing of oil phase, water phase and additives.

Technical advantages

• High mixing uniformity for fine, consistent product texture.
• Suitable for a wide range of viscosities typical of skincare formulations.
• Vacuum degassing capability to reduce air inclusion and improve product quality.
• Hygienic, easy-to-clean design meeting routine chemical production standards.
• Scalable configuration from laboratory to industrial production.

50 L double planetary mixer — key parameters
Cylinder volume: full volume ≈ 50 L
Motor: 7.5 kW
Reducer: helical gear reducer
Stirring system: 2 planetary (twist-type) agitator groups with bottom scrapers; simultaneous revolution and rotation; 1 set of wall-scraping knives; material SS304 + F4
Shaft seal: mechanical seal
Main structure: simple arm frame with 4 heavy-duty swivel casters
Cylinder cover: 2 × DN50 sight/port windows; feed, vent and temperature ports; dovetail groove with embedded rubber sealing rings; SS304
Mixing cylinder: inner cylinder φ400 × 500 mm; wall thickness 8 mm; precision-turned and polished; 3 mm water-cooled jacket; multilayer internal guide reinforcement; discharge port 1.5" (DN40) plunger type, designed to avoid dead corners
Hydraulic system: hydraulic cylinder D150 × D80 × 650; oil station: 1.5 kW pump; 100 L oil tank
Inverter/drive: 7.5 kW vector inverter (VFD)
Technical parameters: vacuum in cylinder up to -0.098 MPa; jacket pressure up to 0.4 MPa; speeds: revolution 0–36 rpm, rotation (low speed) 0–90 rpm; speed control: variable frequency regulation.

Characteristics / technical specifications

• Nominal cylinder capacity: ~50 L
• Inner cylinder size: φ400 × 500 mm; wall thickness 8 mm; material SS304; 3 mm water-cooled jacket; precision-turned and polished surfaces
• Discharge: 1.5" (DN40) plunger-type outlet designed to minimize dead zones
• Stirrers: dual planetary (twist-type) agitator groups + bottom scrapers + wall-scraping knives; contact materials SS304 + F4
• Motor: 7.5 kW; reducer: helical gear type
• Shaft seal: mechanical seal
• Main frame: simple arm frame with 4 heavy-duty universal casters
• Cylinder cover: 2 × DN50 sight/port windows; feed/vent/temp ports; dovetail groove with sealing rubber rings
• Hydraulic: cylinder D150×D80×650; oil pump 1.5 kW; oil tank 100 L
• Drive: 7.5 kW vector inverter (VFD) for variable-speed control
• Vacuum capability: up to -0.098 MPa in cylinder
• Jacket pressure: up to 0.4 MPa
• Speed ranges: revolution 0–36 rpm; rotation 0–90 rpm
