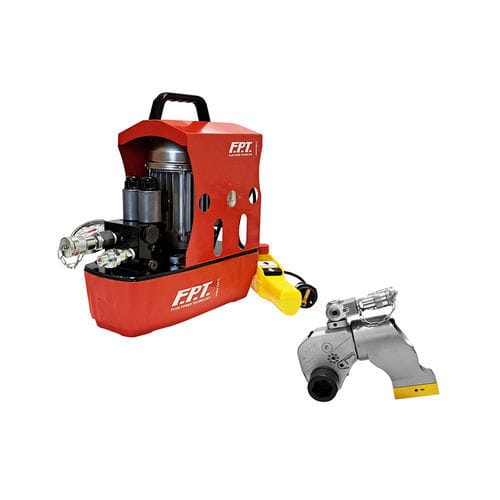

Radial piston pump FPT-MPU-HTW

airelectricnormal priming

• Portable Minipump, extremely light and compact, suitable for using all small and medium sized torque wrenches. • Only 12 kg weight to operate in any environment. • Maximum working pressure pressure 700 bar. • Single-phase electric motor 230V-50Hz, power 0.55 kW. • Radial piston pump, double stage, suitable for quick and every day use • 2.1 liter resin tank. • Metal cage with ergonomic handle. • Pressure gauge and valve handwheel pressure regulator as standard • GR-1 quick coupling as standard on the outports. Portable Mini pumps for hydraulic torque wrenches Portable Mini pumps for hydraulic torque wrenches, only 12 kg. Suitable for operating small and medium-sized hydraulic hex wrenches or square drive wrenches. 12 Kg to be super light and compact. The ideal electric mini pump for all hydraulic tightening applications that require easy transportability. Equipped with solenoid valve and remote control with 3 meter cable, for complete control of the pump, with the possibility of managing the advancement and return of the torque wrenches. The operator is totally free to carry on tightening operations, having full control of the mini pump. The mini pump has a maximum pressure of 700 bar and is equipped with a robust metal protective casing and an ergonomic handle to easily move and transport it anywhere. As standard it has a pressure gauge, the pressure regulator valve and GR-1 quick couplings on the outlets.
