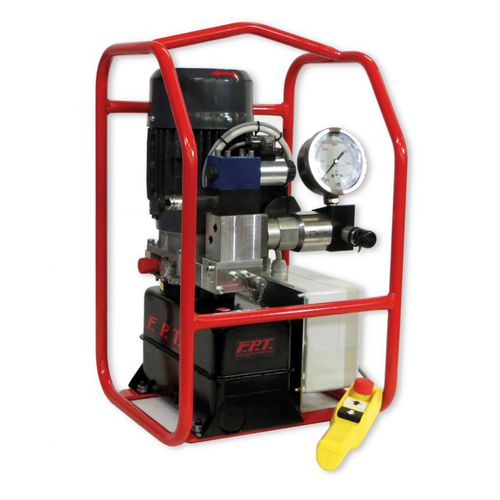

Electric hydraulic pump FPT 1500

gearautomaticcombined

FPT 1500 Series are single phase electric pump to activate hydraulic tensioners up to 1500 bar. • The design is based on a low pressure gear pump and oil-oil pressure intensifier. • The elctric pump is realized with solenoid valve. • All operation of the pump are managed by the remote control Available as option: FPT DATA LOGGER Using an electric pump for hydraulic bolt tensioners with Data Logger allow the operator to download the data of the tightening operations and be able to store them and analyze them. Single phase electric pump suitable for operating hydraulic bolt tensioners at 1500 bar. The project is based on a low pressure gear pump combined with an oil-oil pressure intensifier. The hydraulic pump is made in two fully automatic versions: one that allows the generation of pressure up to 1500 bar and two other models up to 2000 bar and 3000 bar. The panel control valve allows the comfortable setting of the outlet pressure. To download the data, the option with data logger is available; in fact, using an electric pump for bolt tensioners, it is possible to request as an optional the DATA LOGGER that allows the operator to download the data of the tightening performed and be able to subsequently analyze them. This model of control unit is extremely compact, light and suitable for use on wind towers or in environments with limited space available. FPT – Fluid Power Technology designs and manufactures special high-pressure pumps and hydraulic power packs from 700 to 4,000 bar. For maximum customization and versatility.
