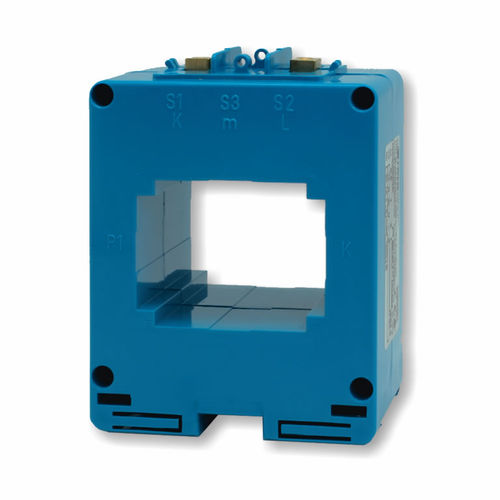

Current transformer TAC054 seriesinstrumentencapsulatedindustrial
Add to favorites
Compare this product
Characteristics
- Type
- current, instrument
- Configuration
- encapsulated
- Applications
- industrial
- Electrical characteristics
- single-phase
- Mounting
- through-hole
- Norms
- IEC
- Protection level
- IP20
- Other characteristics
- protection
- Primary current
Max.: 2,000 A
Min.: 400 A
- Secondary current
1 A, 5 A
- Frequency
Max.: 60 Hz
Min.: 50 Hz
Description
High Accuracy CT 54x34 41x41 - 400÷2000A
• self estinguishing thermoplastic material UL94-V0
• operating frequency 50÷60 Hz
• insulation reference voltage 0,72 kV
• test voltage 3 kV x 1’ 50 Hz
• insulation classe E
• protection degree IP 00
• protection degree with terminal covers IP 20
• continuous overcurrent 100% In
• rated short-time thermal current (I th) 60 In
• rated dynamic current (I dyn) 2,5 x I th
• max. power dissipation (max range value) ≤ 12,5W
• operating temperature -25 +50 °C
• storage temperature -40 +80 °C
• manufactured according to IEC/EN 61869-1 IEC/EN 6
