Current transformer T series
encapsulatedindustrialIEC

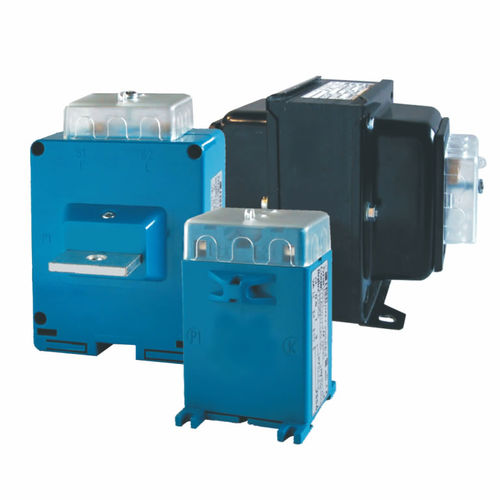

Current transformer - T series - FRER - encapsulated / industrial / IEC
Current transformer - T series - FRER - encapsulated / industrial / IEC
Current transformer - T series - FRER - encapsulated / industrial / IEC - image - 2
Current transformer - T series - FRER - encapsulated / industrial / IEC - image - 3
Current transformer - T series - FRER - encapsulated / industrial / IEC - image - 4
Current transformer - T series - FRER - encapsulated / industrial / IEC - image - 5
Current transformer - T series - FRER - encapsulated / industrial / IEC - image - 6
Add to favorites
Compare this product
Go to the FRER website for more information

Characteristics

Type
current
Configuration
encapsulated
Applications
industrial
Norms
IEC
Other characteristics
safety
Output power kVA

Min.: 0 kVA
(0 hp)

Max.: 0.06 kVA
(0.081577 hp)

Primary current

Min.: 1 A

Max.: 100 A

Secondary current

5 A

Frequency

Min.: 50 Hz

Max.: 60 Hz

Description

Ratio Correcting Measuring CT 0,1÷5A/0,1÷5A - 1÷5VA cl. 0,5 Ratio Correcting Measuring CT 0,1÷15A/0,1÷5A - 2÷10VA cl. 0,5 Ratio Correcting Measuring CT 0,1÷15A/0,1÷5A - 4÷20VA cl. 0,5 Ratio Correcting Protection CT 1÷100A/1o5A 10VA 5P5 - 8 5P10 - 5VA 5P15 - 3VA 5P20 Ratio Correcting Protection CT Ratio Correcting Protection CT 1÷100A/1or5A 20VA 5P5 - 15 5P10 - 8VA 5P15 - 6VA 5P20 Ratio Correcting Protection CT 1÷100A/1or5A 40VA 5P5 - 30 5P10 - 15VA 5P15 - 10VA 5P20 Ratio Correcting Protection CT 1÷100A/1o5A 60VA 5P5 - 40 5P10 - 20VA 5P15 - 15VA 5P20 • self estinguishing thermoplastic material UL94-V0 • operating frequency 50÷60 Hz • insulation reference voltage 0,72 kV • test voltage 3 kV x 1’ 50 Hz • insulation classe E • protection degree IP 30 • continuous overcurrent 100% In • rated short-time thermal current (I th) 60 In • rated dynamic current (I dyn) 2,5 x Ith • safety factor N ≤ 5 • operating temperature -25 +50 °C • storage temperature -40 +80 °C • manufactured according to IEC/EN 61869-1 IEC/EN 61869
