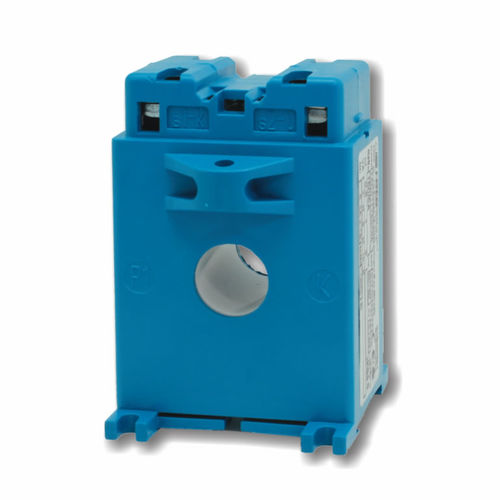

Current transformer TTS0 seriesencapsulatedfor electronicsthrough-hole
Add to favorites
Compare this product
Characteristics
- Type
- current
- Configuration
- encapsulated
- Applications
- for electronics
- Mounting
- through-hole
- Norms
- IEC
- Protection level
- IP20
- Other characteristics
- protection
- Primary current
Max.: 600 A
Min.: 10 A
- Frequency
Max.: 400 Hz
Min.: 40 Hz
Description
CT for electronic applications Ø17
CT for electronic applications Ø22
CT for electronic applications 40x10 Ø32
• self estinguishing thermoplastic material UL94-V0
• operating frequency 40÷400 Hz
• insulation reference voltage 0,72 kV
• test voltage 3 kV x 1’ 50 Hz (4kV*)
• insulation classe E
• protection degree IP 20
• continuous overcurrent 1,2 In (2 In *)
• rated short-time thermal current (I th) 10 In x 1sec. *
• operating temperature -25 +50 °C
• storage temperature -40 +80 °C
• manufactured according to IEC/EN 61869-1 IEC/EN 61869-2
• integrated secondary terminals 6mm² (no *)
