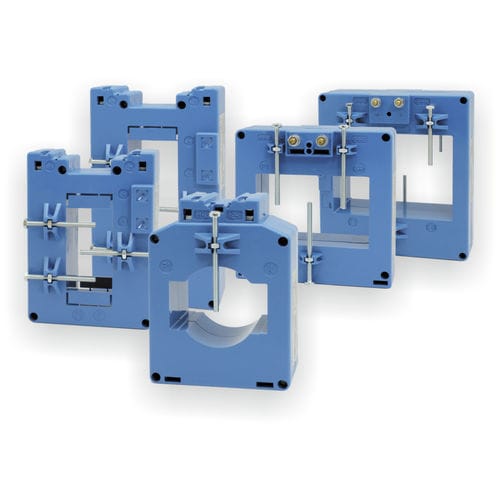

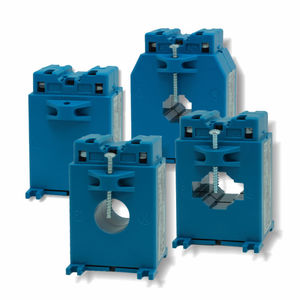

Current transformer TA DI PROTEZIONE
instrumentencapsulatedprotection

current transformer
current transformer
current transformer
current transformer
current transformer
current transformer
current transformer
current transformer
current transformer
current transformer
current transformer
current transformer
current transformer
current transformer
current transformer
current transformer
current transformer
current transformer
current transformer
current transformer
current transformer
current transformer
current transformer
current transformer
Add to favorites
Compare this product


Characteristics

Type
current, instrument
Configuration
encapsulated
Applications
industrial, protection
Electrical characteristics
single-phase
Mounting
through-hole
Norms
IEC
Other characteristics
high-accuracy
Primary current

Max.: 8,000 A

Min.: 5 A

Frequency

Max.: 60 Hz

Min.: 50 Hz

Description

selfestinguishing thermoplastic material - UL94-V0 operating frequency - 50-60 Hz insulation reference voltage - 0,72 kV test voltage - 3kVx1'50 Hz insulation - dasse E protection degree - IP 20 continuous overcurrent - 1,2 In rated short-time thermal current (1 th) - 60 In rated dynamic current (1 dyn) - 2,5 x 1 th max. power dissipation (max range value) - 1 <10W operating temperature - -25 +50 °C storage temperature - -40 +80°C manufactured according to - IEC/EN 61869-1 integrated secondary terminals - IEC/EN 61869-2 6mm2
