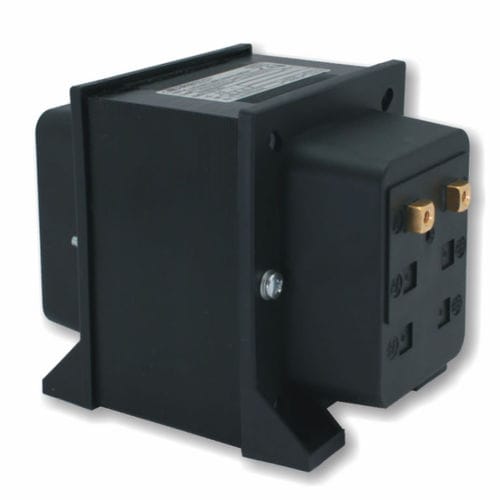

Voltage transformer TTV007 seriesmeasurementencapsulatedindustrial
Add to favorites
Compare this product
Characteristics
- Type
- measurement
- Configuration
- encapsulated
- Applications
- industrial
- Electrical characteristics
- voltage
- Norms
- IEC
- Protection level
- IP20
- Other characteristics
- high-accuracy
- Output power kVA
0.0015 kVA
(0.002039 hp)- Primary voltage
Min.: 100 V
Max.: 600 V
- Secondary voltage
100 V
- Frequency
Min.: 50 Hz
Max.: 60 Hz
Description
High Accuracy VT 3/1,5VA cl.0,2
• self estinguishing thermoplastic material UL94-V0
• operating frequency 50÷60 Hz
• insulation reference voltage 0,72 kV
• test voltage 3 kV x 1’ 50 Hz
• insulation classe E
• protection degree IP 00
• protection degree with terminal covers IP 20
• rated voltage factor 1,2 continuativo / continuous
• thermal power 6 times of rated burden
• operating temperature -25 +50 °C
• storage temperature -40 +80 °C
• manufactured according to IEC/EN 61869-1 IEC/EN 61869-3
