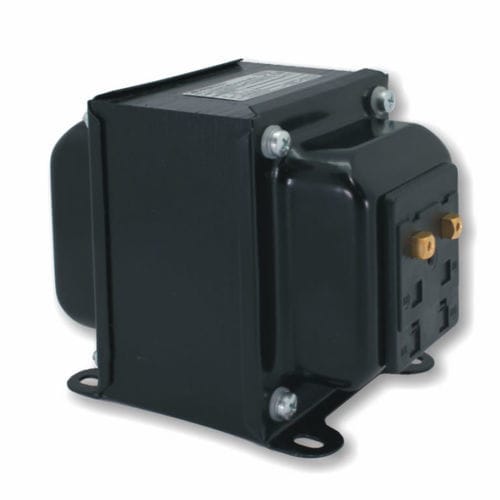

Instrument transformer TTV050 seriesencapsulatedfor electrical networksindustrial
Add to favorites
Compare this product
Characteristics
- Type
- instrument
- Configuration
- encapsulated
- Applications
- industrial, for electrical networks
- Electrical characteristics
- voltage
- Other characteristics
- precision
- Output power kVA
Max.: 0.05 kVA
(0.067981 hp)Min.: 0.025 kVA
(0.033991 hp)- Frequency
50 Hz, 60 Hz
Description
Description
Available downloads
Images
Characteristics / technical specifications
- Voltage measuring transformer model TTV050.
- Rated power: 50/25 VA.
- Accuracy class: 0.5.
Available downloads
- Datasheet (product PDF).
- Available options (PDF describing transformer options).
- Certifications (product certification PDF).
- Technical drawing PDF (construction drawing in PDF).
- Technical drawing DWG (DWG file provided in a ZIP archive).
Images
- Main product image (front view).
- Detail image of the product.
- Outline drawing (technical image).
Characteristics / technical specifications
- Model: TTV050
- Type: Voltage measuring transformer
- Rated power: 50/25 VA
- Accuracy class: 0.5
- Documentation available: datasheet, available options, certifications, technical drawings (PDF and DWG)
Catalogs
No catalogs are available for this product.
See all of FRER‘s catalogsOther FRER products
VOLTAGE TRANSFORMERS - MEASURING VOLTAGE TRANSFORMERS
