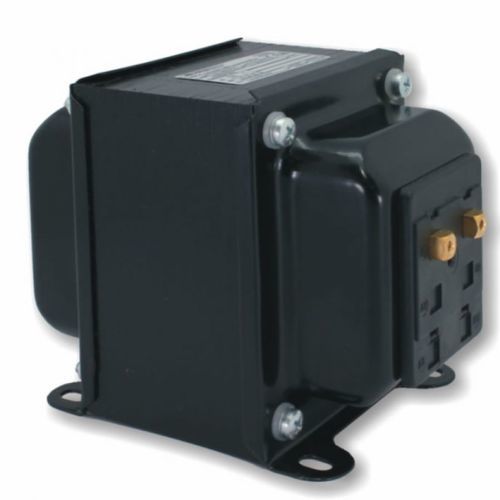

Instrument transformer TTV100 seriesencapsulatedfor electrical networksfor industrial applications
Add to favorites
Compare this product
Characteristics
- Type
- instrument
- Configuration
- encapsulated
- Applications
- for industrial applications, for electrical networks, for energy meters
- Electrical characteristics
- voltage
- Protection level
- IP20
- Other characteristics
- high-accuracy, precision
- Output power kVA
Max.: 0.1 kVA
(0.135962 hp)Min.: 0.05 kVA
(0.067981 hp)- Frequency
50 Hz, 60 Hz
Description
Product name
TTV100
Short description
Measuring voltage transformer (VT) with rated power 100/50 VA and accuracy class 0.5. Intended for precision voltage measurement and instrumentation in industrial electrical systems. Designed for use in metering and protection circuits where a class 0.5 accuracy is required.
Available documents and downloads
Images
Technical specifications
TTV100
Short description
Measuring voltage transformer (VT) with rated power 100/50 VA and accuracy class 0.5. Intended for precision voltage measurement and instrumentation in industrial electrical systems. Designed for use in metering and protection circuits where a class 0.5 accuracy is required.
Available documents and downloads
- Data sheet (PDF)
- Available options (PDF)
- Certifications (PDF)
- Technical drawings: DWG (zip) and PDF
Images
- Main product image available
- Additional product images and dimensional drawing available
Technical specifications
- Model: TTV100
- Product type: Measuring voltage transformer (VT)
- Rated power: 100/50 VA
- Accuracy class: 0.5 (cl.0,5)
- Manufacturer / Brand: FRER
- Documentation available: data sheet, options list, certifications, technical drawings (PDF and DWG)
- Technical drawing formats: DWG (zip) and PDF
