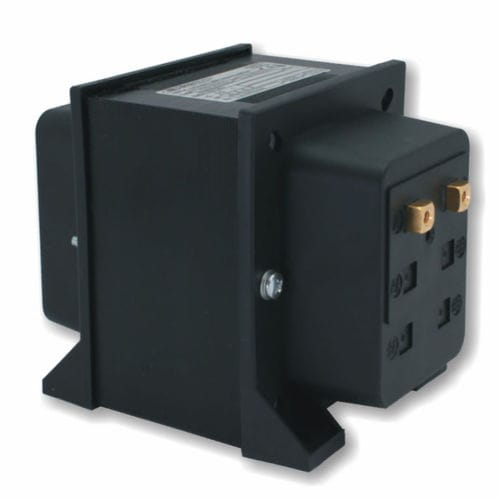

Voltage transformer TTV010 seriesinstrumentencapsulatedindustrial
Add to favorites
Compare this product
Characteristics
- Type
- instrument
- Configuration
- encapsulated
- Applications
- industrial
- Electrical characteristics
- voltage
- Norms
- IEC
- Protection level
- IP20
- Other characteristics
- protection
- Output power kVA
0.012 kVA, 0.015 kVA, 0.025 kVA, 0.035 kVA
(0.016315 hp, 0.020394 hp, 0.033991 hp, 0.047587 hp)- Primary voltage
Min.: 100 V
Max.: 600 V
- Secondary voltage
100 V
- Frequency
Min.: 50 Hz
Max.: 60 Hz
Description
Protection VT 25/12VA 3P - 35/15VA 6P
• self estinguishing thermoplastic material UL94-V0
• operating frequency 50÷60 Hz
• insulation reference voltage 0,72 kV
• test voltage 3 kV x 1’ 50 Hz
• insulation classe E
• protection degree IP 00
• protection degree with terminal covers IP 20
• rated voltage factor 1,9 continuativo / continuous
• thermal power 6 times of rated burden
• operating temperature -25 +50 °C
• storage temperature -40 +80 °C
• manufactured according to IEC/EN 61869-1 IEC/EN 61869-3
Catalogs
No catalogs are available for this product.
See all of FRER‘s catalogsOther FRER products
VOLTAGE TRANSFORMERS - MEASURING VOLTAGE TRANSFORMERS
