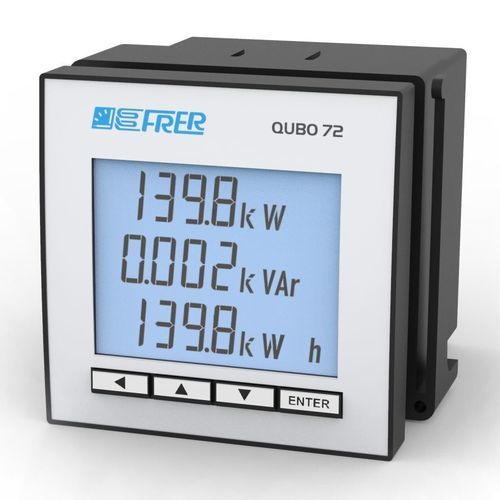

Electrical network analyzer Q72P3H

3-phase electrical networkscompactmulti-parameter

Compact multifunction analyser for use in three-phase three or four wires systems with unbalanced load. The QUBO H version has, in addition to the main quantities of an electrical network (including bi-directional active and reactive energy counting), an additional set of "advanced" measurements that allow more efficient monitoring or provide additional information on the operating status of the system. It has RS485-Modbus RTU communication as standard and, as an option, can be equipped with 1 (or 2 if Serial Communication is not used) programmable alarm output, alternatively as a pulse output for retransmission of active or reactive energy. - Bi-directional active and reactive energy counting - Advanced measurements for efficient monitoring - RS485-Modbus RTU communication (standard) - Optional programmable alarm output (1 or 2 if Serial Communication is not used) - Pulse output for retransmission of active or reactive energy Technical specifications / Features: - Product type: Insulated Network Analyzer + THD reader - Form factor: 72x72mm - System: Three-phase, three or four wires, unbalanced load - Voltage: 100-400V - Current: 1-5A - Communication: RS485 Modbus RTU - Programmable alarm output: 1 (or 2 if Serial Communication is not used) - Pulse output: For retransmission of active or reactive energy
