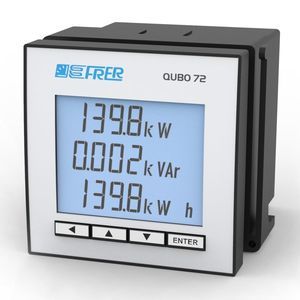

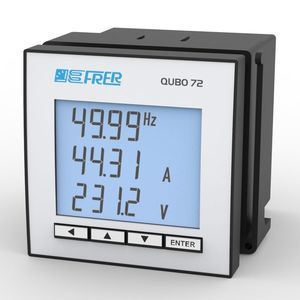

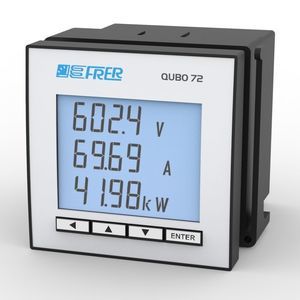

Monitoring analyzer Q72D3H

for networkscompactmodular

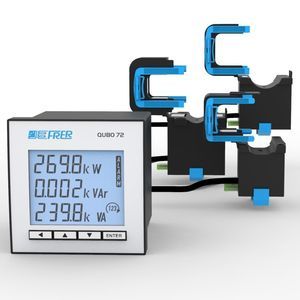

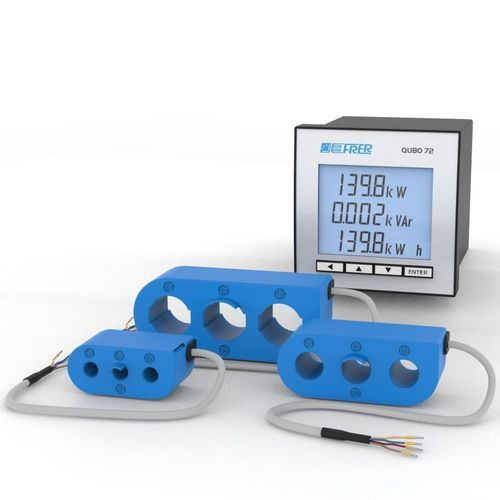

Multifunction network analysers suitable for three-phase, three or four wires unbalanced load systems. The QUBO H version performs also “advanced” measurements, which allow a very efficient monitoring and provide additional information about the system operating conditions, also by means of different communication protocols. Four versions with direct current input 63A, 125A, 160A and 250A supplied with triple miniature CTs have been introduced to reduce cost and wiring time. Thanks to its small size and compatibility with spacings of modular switches, the miniature CTs can be mounted in a very small spaces conditions. - Suitable for three-phase, three or four wires unbalanced load systems - Advanced measurements for efficient monitoring - Provides additional information about system operating conditions - Supports different communication protocols - Available in four versions: 63A, 125A, 160A, 250A direct current input - Supplied with triple miniature CTs - Reduces cost and wiring time - Compact size, compatible with modular switch spacings - Miniature CTs can be mounted in very small spaces Technical specifications / Features: - Product type: Multifunction network analyser - Model: Q72D3H - Series: QUBO 72 SERIES - 72x72 - Direct current input options: 63A, 125A, 160A, 250A - Supplied with triple miniature current transformers (CTs) - Advanced measurement capabilities - Supports multiple communication protocols (including Modbus RTU) - Compact design for easy installation in limited spaces
