Multifunction power metering Q72P3L

Product overview

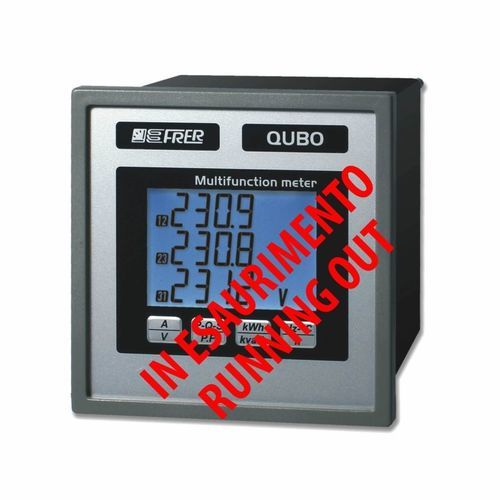

Multifunction network analyser suitable for use in three-phase 3- or 4-wire systems, including unbalanced loads and in the presence of distorted waveforms. Displays main electrical quantities and performs active and reactive energy counting. Designed for industrial use with direct front-key access to measurements and adjustable display backlighting for varied light conditions.

Main features

• Compatible with three-phase 3- or 4-wire systems, including unbalanced loads and distorted waveforms
• Displays main electrical network quantities, including active and reactive energy counting
• Four front keys provide direct access to measurement pages; each key indicates the sequence of measurements
• Adjustable display backlighting with 5 intensity levels for clear viewing in different lighting conditions
• Compact panel format 72x72 mm
• Large, legible characters and backlight for readability at a distance

Available documents and resources

• Data sheet (PDF)
• User manual (PDF)
• Available options (PDF)
• Technical drawings: DWG and PDF

Technical specifications

• Commercial designation: Q72P3L
• Series: QUBO 72
• Front panel size: 72x72 mm
• Supply: Aux. 230 Vac
• Voltage measurement range: 100 - 400 V (three-phase)
• Example current measurement range: 1 - 5 A
• System compatibility: Three-phase (3 or 4 wires); supports unbalanced loads and distorted waveforms
• Measured quantities: Main electrical quantities including active and reactive energy counting
• User interface: 4 front keys with direct access to relevant display pages
• Display: Adjustable backlight with 5 intensity levels
• Downloadable resources: Data sheet, user manual, options brochure, technical drawings
