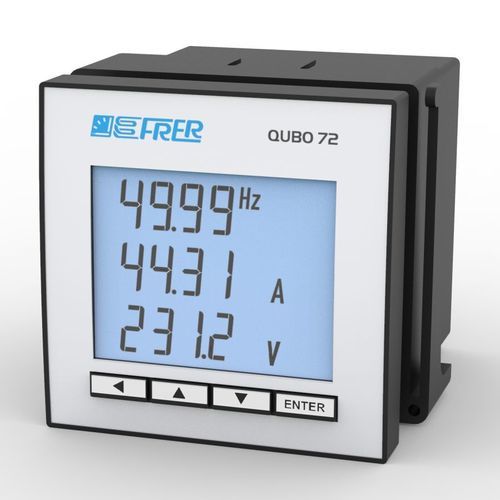

Single-phase electric energy meter Q72S3L

panel-mountprogrammablebi-directional

Overview
Compact multifunction analyzer for use in single-phase low-voltage systems. Displays the main electrical quantities of a power network, including bidirectional active and reactive energy counters. Provides an additional set of "advanced" measurements for more efficient monitoring and to indicate system operating status.

Communications and outputs

• Standard communication: RS485 - Modbus RTU.
• Optional outputs: 1 or 2 programmable alarm outputs; alternatively configurable as pulse outputs for retransmission of active or reactive energy.

Documentation available

• Data sheet
• User manual
• Communication protocols - Modbus RTU
• Available options

Technical drawings

• Technical drawing PDF
• Technical drawing DWG (archive)

Features / technical specifications

• Type: Single-phase network analyzer for Low Voltage (LV)
• Panel format: 72 x 72 mm (QUBO 72 series)
• Measurements: main electrical quantities and bidirectional active and reactive energy counters
• Advanced measurements: additional set for advanced monitoring and operational diagnostics
• Communication: RS485 - Modbus RTU (standard)
• Outputs: 1 or 2 programmable alarm outputs or pulse outputs for energy (optional)
• Design: compact, suitable for panel mounting in 72 x 72 enclosures
