Energy meter power meter Q72C3L

multi-functionpanel-mountDC

Description
Multifunction analyzer designed for use in direct current (DC) systems. The voltage input is connected directly to the line while the current input is derived from a shunt; the primary current value can be set via a programming menu. Measures main DC electrical quantities including bidirectional energy counting and ampere-hours (Ah), and provides an additional set of advanced measurements for more efficient monitoring and diagnostic indication of system status.

Communication and outputs
Device supplied as standard with RS485 - Modbus RTU communication. Optionally configurable with one programmable alarm output, which can alternatively be set as a pulse output for retransmission of energy or Ah.

Documentation available
Datasheet, user manual, communication protocols (Modbus RTU) and documentation on available options are provided.

Technical characteristics / specifications

• Type: network analyzer for direct current (DC) lines

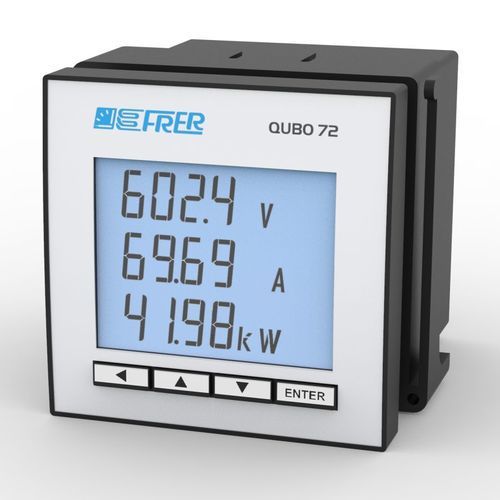

• Series/product: QUBO 72 - 72x72 (model Q72C3L)
• Front size / panel cutout: 72 x 72 mm
• Voltage input: direct connection to the line
• Current input: proportional, derived from shunt; primary current value configurable via menu
• Measured quantities: main DC network quantities, bidirectional energy counting, Ah
• Additional measurements: set of advanced measures for monitoring and diagnostics
• Standard communication: RS485 - Modbus RTU
• Optional outputs: 1 programmable alarm output or pulse output for energy/Ah retransmission
