Monitoring analyzer Q72A3H

for networkscompact

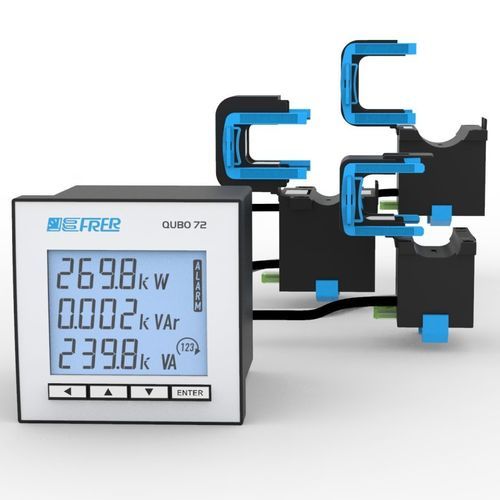

KIT QUBO 72H + 3 MINIATURE SPLIT-CORE CTs The kit consists of a multifunction network analyzer QUBO H series with 3 miniature split-core CTs. It is suitable for use in three-phase with three or four wires electrical systems, even with unbalanced loads and distorted waveforms, for the acquisition of all the main measurements. The small size of the miniature CTs allows an installation even in places with a reduced access, making this system suitable for retrofitting in existing installations, but also an excellent solution for monitoring electrical networks in new installations. The QUBO 72H version has, in addition to the main parameters of an electrical network (including bi-directional active and reactive energy counts), an additional set of "advanced" measurements that allow more efficient monitoring, or provide additional information on the operating status of the system. It has RS485-Modbus RTU communication as standard. - Multifunction network analyzer QUBO H series - 3 miniature split-core current transformers (CTs) - Suitable for three-phase, three or four wire systems - Works with unbalanced loads and distorted waveforms - Compact CTs for easy installation in tight spaces - Ideal for retrofitting and new installations - Measures main electrical parameters including bi-directional active and reactive energy - Advanced measurements for efficient monitoring and system status information - RS485-Modbus RTU communication standard Technical documentation available: - Data sheet (PDF) - User manual (PDF) - Communication protocols - Modbus RTU (PDF) - Available options (PDF) - PDF technical drawing - Model: Q72A3H - Series: QUBO 72 SERIES - 72x72 - Brand: FRER
