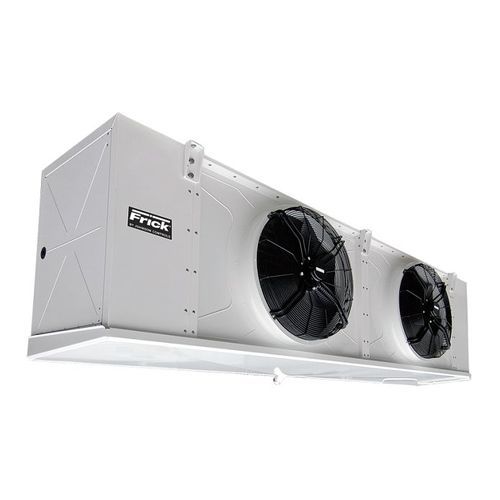

Axial unit cooler GHN

for the food industryfor industrial refrigerationair

Air chilling evaporator units specifically designed for food processing rooms Stainless steel air chilling evaporators suitable for most low noise and gentle airflow applications typical of food process rooms. For medium-large freezer applications and refrigerated spaces Suitable for any application requiring external static pressure GHN Unit Cooler Style Evaporator The GHN Unit Cooler Style Evaporator is designed for food processing rooms, providing low noise and gentle airflow with stainless steel construction. It offers a standard capacity range up to 60 TR @ 10°F TD, with 4 to 10 row coils and fan diameters from 16” to 36”. Suitable for medium-large freezer applications and refrigerated spaces, this evaporator features easy-to-clean hinged fans and is configurable for various refrigerant applications including DX feed, flooded operation, and secondary coolants. Features Standard capacity range: Through 60 TR @ 10°F TD (40 TR) (Direct expansion ammonia) Fan diameters from 16” to 36” Up to four (4) fans per unit 4, 5, 6, 8, or 10 row coils Fan motors are available up to 7½ HP Flexibility 4, 5, 6, 8, or 10 row coils Configurable Standard capacity range: Through 60 TR @ 1 OOF TD (40 TR) Robust Suitable for any application requiring external static pressure Durable Casing construction is galvanized steel with a white powder coating
