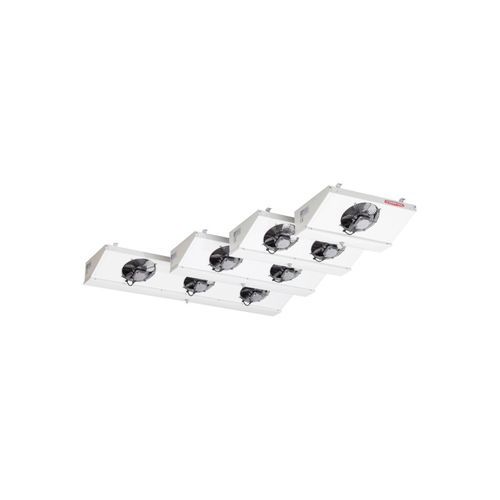

Axial unit cooler MV series

for industrial refrigerationindustrialcold chamber

Mini-vap unit coolers of minimum dimensions, specially height since they are primarily designed for commercial refrigerating cabinets or small cold storage rooms of low height. CHARACTERISTICS Casing in aluminium sheet coated in white polyester RAL-9002 resin. With hinged drip tray at the bottom and intermediate tray under the coil to allow the water drainage and to lodge the defrosting heaters. Galvanized steel brackets for anchoring to the ceiling. Axial single phase fan motors : Diameter 230mm (MVP, MVG, MVM and MVB): shaded pole type 230V 50/60Hz IP-42. Diameter 300mm (MVM and MVB): external rotor type 230V 50/60Hz, IP-44. SPECIFIC OPTIONS OF THIS RANGE Electrical or hot gas defrosting. Circuits for water or other liquids. Stainless steel tubes (MVM y MVB). Pretreatred aluminium or stainless steel fins. (MVM y MVB). Completly Casing in stainless steel. Coated coil with polyurethane resin (consult the Technical Departmen of Frimetal). Adaptation to refrigerant CO2 o glycol.
