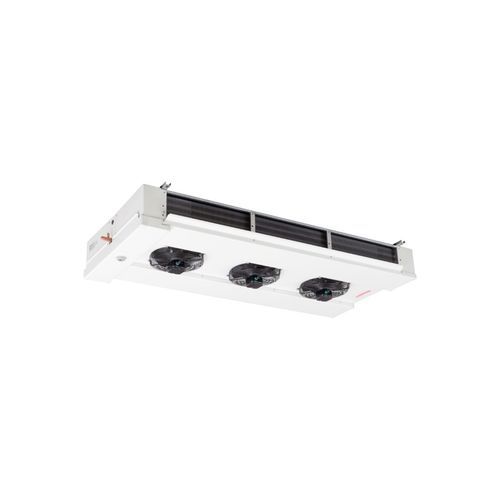

Axial unit cooler PI series

commercialcold chamberair

Ceiling mounted evaporators with dual air discharge and low height, designed to be placed in the centre of the cold room ceiling providing a gentle and uniform air flow and making the best use of the space. Valid for the preservation of fresh or frozen products and ideal for aisles or working rooms. With axial fan motors of external rotor, single phase and diameter of 300 and 400mm in normal version N and silent version S for applications where low level noise or smooth air flow is required. CHARACTERISTICS Casing in aluminium sheet and galvanized steel coated in white polyester RAL-9002 resin. Supports of galvanized steel for anchoring to the ceiling. Axial fan motors with external rotor, single phase 230V/50Hz IP-44 and thermal protection. Normal version N : 4 pole fan motors 1300rpm. Silent version S : 6 pole fan motors 900rpm. SPECIFIC OPTIONS OF THIS RANGE Anti condensation insulation drip tray. Circuits for water, water-glycol or other brines or liquids. Special fan motors single phase 230V/60Hz or three phase from 230V to 460V and 50 or 60Hz. Placement of an aditional heating coil to work as a drying unit.
