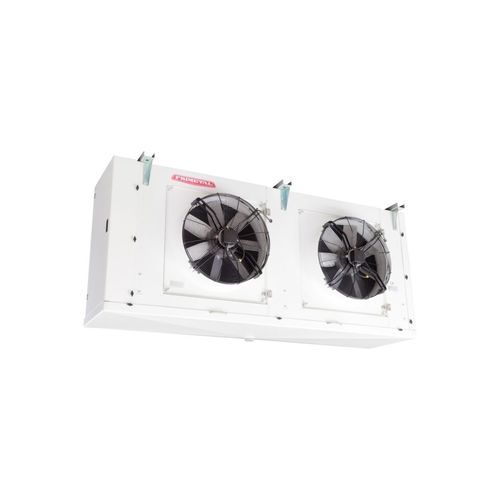

Axial unit cooler GR series

industrialaircooling

Large industrial cubic evaporators for all kind of applications with three phase fan motor of diameter 630 and 800mm. CHARACTERISTICS Casing of aluminium sheet or galvanized steel coated in white polyester RAL-9002 resin. Door system for an easy maintenance. Galvanized steel supports for anchoring to the ceiling. Axial fan motors with external rotor, IP-54 protection and thermal protection (thermocontact). Three phase, 2 speeds, 400V/50Hz. SPECIFIC OPTIONS OF THIS RANGE All kind of defrosting systems: by electric heaters, hot gas, cycle inversion and water spread. Round heaters for the fan motors duct. Anti condensation insulated drip tray. Circuits for water, brines or other liquids. Special fan motors three phase from 230V to 460V and 50 or 60Hz, special aerofoil fan motors for high pressure drop, etc.
