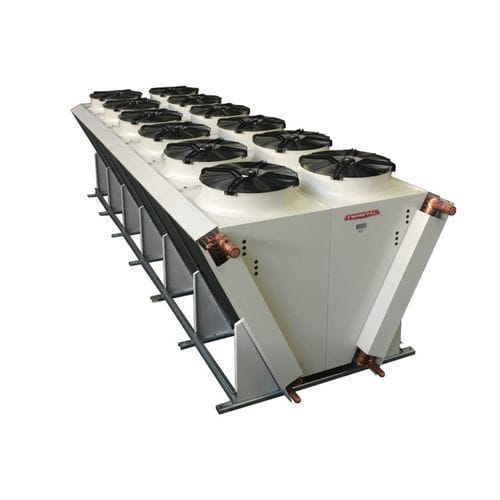

V condenser VC series

air-cooledsteelprocess

Air cooled condensers with three phase axial fans of diameter 800mm and with the exchanging coils in a “V” shape. This set-up reduces the area occupied by an average of 35% compared with other types of condensers. They are manufactured in two version according to the turning speed of the fan motors, VCN (normal) and VCS (silent). The fan motors have two speed (connection delta or star), which make a total of four speed possibilities: VCN series (normal): Connection D : 900 rpm Connection Y : 680 rpm VCS series (silent): Connection D : 450 rpm Connection Y : 350 rpm CHARACTERISTICS Casing in galvanized and coated steel with a white polyester resin RAL-9002 of high corrosion resistance. Floating coil system that avoids any kind of contact between the copper tubes and the supporting end plates, assuring a long life for the condenser without leaks. Axial fan motor with external rotor, three phase 400V / 50Hz and two speed. With IP-54 protection and with thermal protection (Thermocontact). SPECIFIC OPTIONS OF THIS RANGE Fan motors wired to an external junction box. Fan motors type EC with electronic speed control with very high energy efficiency. Multicircuits for service to various compressors. Water spray system over the finned coil to improve the efficiency (see PA range).
