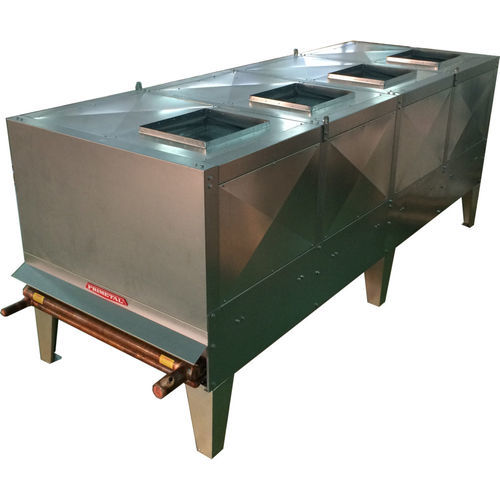

Centrifugal fan condenser KG series

air-cooledsteelprocess

Air cooled condensers with centrifugal fans to be installed in the compressor room with the possibility of connecting ducts to take the air from the outlet of the fans to the outside. They are manufactured in two versions according to the turning speed of the fan motor, KCN (normal) and KCS (silent). CHARACTERISTICS Floating coil system to avoid any contact between the tubes and the end plates, assuring a long life for the condenser without leaks. Many manufacturing options, vertical or horizontal positioning of the units, selectable position for the air outlet, etc. Direct driven centrifugal fan motors for small and medium models and pulley and belt driven. Inner acoustic insulation. Lower cabinet with removable lateral panels and bottom platform for the installation of the compressor and liquid receiver. Multicircuits for service to various compressors. SPECIFIC OPTIONS OF THIS RANGE Inner acoustic insulation. Lower cabinet with removable lateral panels and bottom platform for the installation of the compressor and liquid receiver. Multicircuits for service to various compressors.
