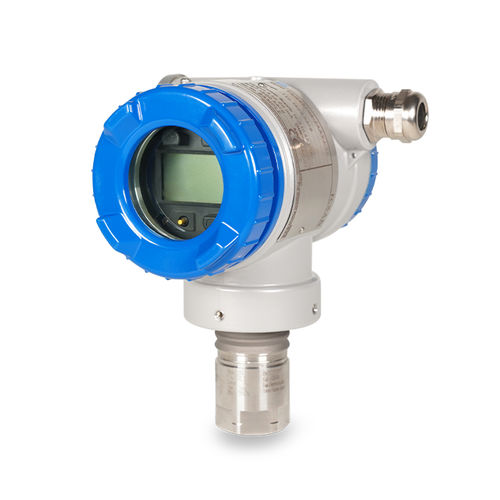

Differential pressure transmitter for high static pressure up to 15 000 psi (1035 bar)
Applications: oil&gas, topside, subsea (depths down to 3500 metres)
Flow measurements with the following static pressures :
> 7500 Psi (517 bar)
> 10 000 Psi (690 bar)
> 15 000 Psi (1035 bar)
> 20 000 Psi (1380 bar)
Measuring range :
Up to 130 mbar under static pressures of up to 1380 bar (20,000 Psi).
High performance:
Thanks to the technology based on a sensitive element which floats in the neck of the cell, as well as the presence of a protection membrane, Fuji Electric's high static pressure transmitter is able to achieve outstanding performances for severe environmental conditions unmatched by the competition.
Process connections:
Our transmitters are offered with a multitude of different process connections like a coned and threaded direct connection, or with or without remote seals, and are fitted with adequate marine offshore protection.
Maximum static pressure :Up to 1,379 barg (20,000 psig)
Lowest differential pressure measuring range: 130 mbar (51 inH2O) @1,035 barg (15,000 psig)
Accuracy: Down to 0.1% of calibrated/adjusted span
Extented long term stability: 10 years
