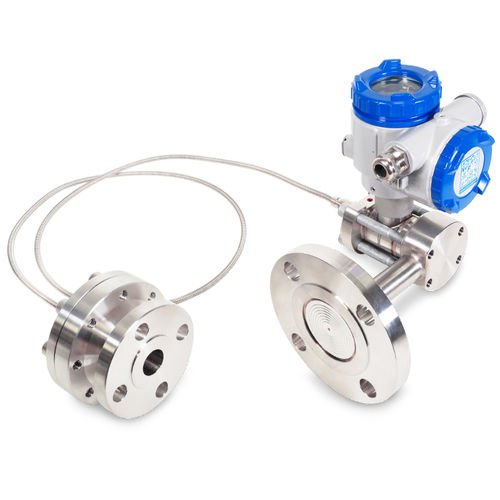

Pressure transmitter with diaphragm seal FKD - FCX-AIV V6 Seriesdifferentialsiliconcapacitive
Add to favorites
Compare this product
Characteristics
- Pressure type
- differential
- Technology
- silicon, capacitive
- Output
- 4-20 mA, HART
- Mounting
- threaded, flush diaphragm, flange, wall-mounted, panel-mount
- Process connection
- NPT 1/4, NPT 1/2
- Fluid
- for gas, for liquids
- Material
- stainless steel
- Protection level
- intrinsically safe, rugged, ATEX, EMC, for extreme conditions, corrosion-resistant, IP67, IP66
- Applications
- for pharmaceutical applications, process, for the food industry, for the petrochemical industry, for OEM, for water treatment, for building automation, for the chemical industry, for boiler, for clean rooms, for the oil and gas industry
- Other characteristics
- CE, precision, two-wire, temperature-compensated, with selectable measurement range, digitally compensated, fast response time, with diaphragm seal, smart, with pulse-snubber, RoHS, low pressure, programmable, custom-made, high-temperature, silicone oil-filled, with aluminum housing, with integrated amplifier, with LCD display
- Pressure range
Min.: 3.2 mbar
(0.05 psi)Max.: 200,000 mbar
(2,900.75 psi)- Precision
0.06 %
- Long-term stability
0.2 %
- Process temperature
Min.: 40 °C
(104 °F)Max.: 120 °C
(248 °F)
Description
DIAPHRAGM SEAL DIFFERENTIAL PRESSURE TRANSMITTER – FKD: AN OPTIMAL SOLUTION FOR COMPLEX FLUIDS
The FKD diaphragm seal differential pressure transmitter from Fuji Electric is designed to meet the demands of the most challenging industrial environments. Equipped with diaphragm seals, it ensures reliable and accurate measurement, even in the presence of aggressive or high-temperature fluids.
FEATURES OF THE DIAPHRAGM SEALS DIFFERENTIAL PRESSURE TRANSMITTER – FKD
- Wide measurement range adaptable to specific needs
- Integrated diaphragm seals for optimal protection against corrosive fluids
- High accuracy and long-term stability
- Compatible with a wide range of industrial fluids
- Analog output and digital communication (Hart, Modbus, etc.)
- Robust construction for use in harsh environments
APPLICATIONS
The FKD diaphragm seals differential pressure transmitter is ideal for measuring differential pressure in chemical, petrochemical, pharmaceutical, and food industries, as well as for fluid control in hydraulic networks and water treatment systems.
ADVANTAGES
Optimal protection thanks to integrated diaphragm seals
High accuracy, even in difficult environments
Adaptability to aggressive fluids and extreme conditions
Advanced communication interface for easy integration
Reliability and low maintenance for extended service life
