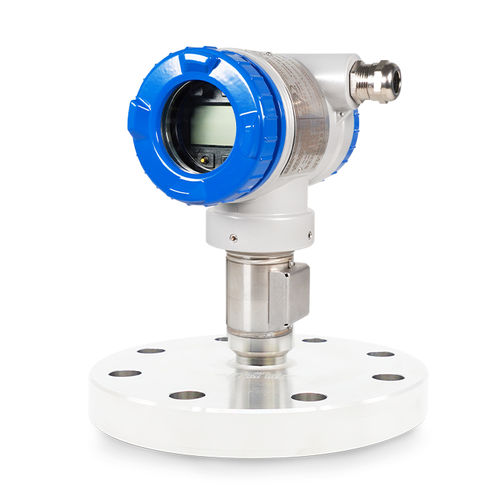

Pressure transmitter with diaphragm seal FKH-F - FCX-AIV V6 Series

absolutesiliconcapacitive

ABSOLUTE DIAPHRAGM SEALS PRESSURE TRANSMITTER – FKH F: HIGH-PRECISION PERFORMANCE FOR DEMANDING ENVIRONMENTS The FKH F absolute diaphragm seals pressure transmitter is designed to accurately measure pressure in complex environments, particularly in the presence of aggressive or high-temperature fluids. Featuring a membrane diaphragm seal technology, this pressure transmitter ensures reliable, safe measurement adapted to the demands of process industries. FEATURES OF THE ABSOLUTE DIAPHRAGM SEALS PRESSURE TRANSMITTER – FKH F - Silicon measurement cell with diaphragm seals technology - Extended measurement ranges up to 10,000 kPa - Adaptable process connections according to industrial standards - Standard 4-20 mA analog output - Available separator materials: stainless steel, Hastelloy, tantalum, titanium, Monel, zirconium, gold coating, or PFA/PTFE - Compliance with SIL2 / SIL3 safety integrity levels APPLICATIONS Ideal for chemical, pharmaceutical, food, energy, petrochemical, water treatment, paper, metallurgy, and marine industries requiring accurate measurements in critical environments. BENEFITS High resistance to corrosion and extreme temperatures High measurement accuracy, even under severe conditions Modular design for easy integration Reduced maintenance thanks to robust sensor design and materials Suitable for aggressive fluids due to specialized diaphragm seals materials
