Pressure sensor with diaphragm seal FKP-F - FCX-AIV V6 Series
relativesiliconcapacitive

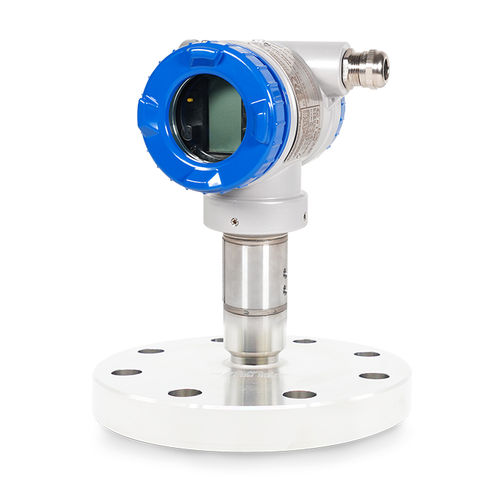

Pressure sensor with diaphragm seal - FKP-F - FCX-AIV V6 Series - FUJI ELECTRIC France - relative / silicon / capacitive
Pressure sensor with diaphragm seal - FKP-F - FCX-AIV V6 Series - FUJI ELECTRIC France - relative / silicon / capacitive
Add to favorites
Compare this product
Go to the FUJI ELECTRIC France website for more information

Characteristics

Pressure type
relative
Technology
silicon, capacitive
Output
4-20 mA, HART
Mounting
threaded, flush diaphragm, wall-mounted, flange, panel-mount
Process connection
NPT 1/4, NPT 1/2
Fluid
for liquids, for gas
Material
stainless steel
Protection level
rugged, EMC, for extreme conditions, corrosion-resistant, intrinsically safe, ATEX, IP67, IP66
Applications
process, for OEM, for the food industry, for the petrochemical industry, for the chemical industry, for pharmaceutical applications, for water treatment, for boiler, for clean rooms, for building automation
Other characteristics
programmable, precision, with integrated amplifier, CE, with diaphragm seal, with digital display, temperature-compensated, RoHS, high-temperature, with pulse-snubber, with selectable measurement range, two-wire, digitally compensated, custom-made, low pressure, with LCD display, fast response time, with aluminum housing, smart, silicone oil-filled
Pressure range

Min.: 0.08 bar
(1.16 psi)

Max.: 100 bar
(1,450.38 psi)

Precision

0.1 %

Long-term stability

0.2 %

Process temperature

Min.: 40 °C
(104 °F)

Max.: 120 °C
(248 °F)

Description

DIAPHRAGM SEALS GAUGE PRESSURE TRANSMITTER – FKP F : ACCURACY AND DURABILITY FOR DEMANDING PRESSURE MEASUREMENT ENVIRONMENTS
The diaphragm seals gauge pressure transmitter - FKP-F from Fuji Electric is designed to ensure reliable and precise measurement in complex industrial environments. Thanks to its diaphragm seals, it allows use with corrosive or high-temperature fluids while ensuring high resistance to extreme conditions.
FEATURES OF THE DIAPHRAGM SEALS GAUGE PRESSURE TRANSMITTER FKP-F
  •  Wide measurement range to suit various industrial applications
  • Diaphragm seals for optimal protection against aggressive media
  • High precision and excellent long-term stability
  • Robust design for resistance to extreme conditions
  • Compatibility with various types of fluids and high temperatur
APPLICATIONS
The diaphragm seals gauge pressure transmitter FKP-F is ideal for chemical, petrochemical, food, and pharmaceutical industries where pressure measurement must be performed on aggressive or sensitive fluids. BENEFITS Effective protection against corrosive fluids and high temperatures Accurate and reliable measurement for industrial process optimization Long lifespan thanks to its robust design Easy installation and maintenance for reduced downtime
