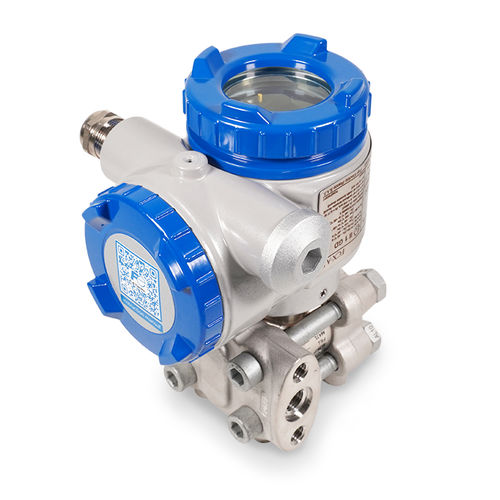

Relative pressure transmitter FKG - FCX-AIV V6 Seriessiliconcapacitive4-20 mA
Add to favorites
Compare this product
Characteristics
- Pressure type
- relative
- Technology
- silicon, capacitive
- Output
- 4-20 mA, HART
- Mounting
- threaded, flush diaphragm, flange, wall-mounted, panel-mount
- Process connection
- NPT 1/4, NPT 1/2
- Fluid
- for gas, for liquids
- Material
- stainless steel
- Protection level
- intrinsically safe, rugged, ATEX, EMC, for extreme conditions, corrosion-resistant, IP67, IP66
- Applications
- for the petrochemical industry, process, for the food industry, for OEM, for water treatment, for building automation, for pharmaceutical applications, for the chemical industry, for boiler, for clean rooms, for the oil and gas industry
- Other characteristics
- precision, CE, two-wire, temperature-compensated, fast response time, digitally compensated, smart, with aluminum housing, with pulse-snubber, RoHS, silicone oil-filled, low pressure, programmable, custom-made, with selectable measurement range, with LCD display, with digital display, with integrated amplifier
- Pressure range
Min.: 0.01 bar
(0.15 psi)Max.: 500 bar
(7,251.89 psi)- Precision
0.06 %
- Long-term stability
0.1 %
- Process temperature
Min.: 40 °C
(104 °F)Max.: 120 °C
(248 °F)
Description
GAUGE PRESSURE TRANSMITTER FKG: A PRECISE AND ROBUST SOLUTION FOR INDUSTRIAL PRESSURE MEASUREMENT
The FKG gauge pressure transmitter from Fuji Electric is designed to provide reliable and precise pressure measurement in the most demanding industrial environments. Thanks to its robust design and high accuracy, it ensures long-term stability, even under extreme conditions. Its easy integration and broad compatibility make it an ideal choice for various industrial applications.
FEATURES OF THE GAUGE PRESSURE TRANSMITTER FKG
- Measurement range: from -1 to 500 bar
- High accuracy: long-term stability and reliability of measurements
- Signal output: available in both analog and digital versions
- Material: stainless steel construction for optimal durability
- SIL2 / SIL3 protection rating: designed for harsh environments
APPLICATIONS
The FKG gauge pressure transmitter is used in various industrial sectors requiring precise pressure control, notably in the fields of energy, petrochemicals, water and fluid treatment, as well as in industrial process automation.
ADVANTAGES
Increased reliability and accuracy for optimal process control
Adaptability to complex industrial environments
Resistance to extreme conditions thanks to robust design
Simplified integration with various control systems
Reduced maintenance for optimized operating costs
VIDEO
