Fixed extraction arm PR series

wall-mountedceiling-mountedflexible

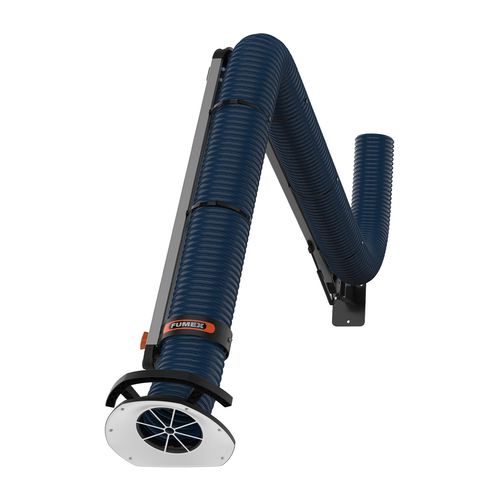

FUMEX PR – Flexible Extraction Arm for Industrial Air Cleaning

The FUMEX PR extraction arm is a highly adaptable and efficient solution designed to remove airborne contaminants directly at the source. Engineered for demanding industrial environments, it combines exceptional manoeuvrability, positional stability, and high capture performance to ensure a cleaner and safer workplace.

Thanks to its external aluminium support arms, the PR system achieves a significantly lower pressure drop (up to 50% less) compared to traditional internal-arm designs, resulting in improved energy efficiency, reduced noise, and easier maintenance.

The arm is available in multiple lengths (1.5 m to 11 m) and diameters (Ø100, 125, 160 mm), making it suitable for a wide range of applications, including welding fumes, industrial gases, dust, and laboratory environments.

Key Features

• Unique manoeuvrability and stable positioning
• External support arms for minimal pressure drop
• Dual gas springs for smooth handling
• Airtight damper for optimal airflow control
• FUMEX Q-MaiD™ quick connection system for easy installation and maintenance
• High-efficiency hood design for maximum contaminant capture

PR Variants

The FUMEX PR is available in three main versions, each designed for specific environments and requirements:

PR STD (Standard)

The standard version for general industrial applications.

• Powder-coated steel brackets
• Anodised aluminium support arms
• Durable blue PVC-coated hose
• Hood designed according to EU standards
• Suitable for welding fumes, dust, and general air extraction

PR CR (Corrosion Resistant)

Designed for environments with corrosive gases and aggressive media.

• Corrosion-resistant materials in all air-contact components
• Stainless steel screws and protected fasteners
• White PE-coated hose for chemical resistance
• Ideal for laboratories, chemical industries, and harsh environments

PR WHITE

A clean, aesthetic version for environments requiring a light-coloured design.

• White powder-coated brackets and components
• White PVC-coated hose
• Same high performance as PR STD
• Suitable for clean environments such as labs, food industry, or light industrial use

Additional Options

• Also available in ATEX version for explosive environments
• Wide range of accessories including LED lighting, extension hoses, spark traps, and special hoods
• Multiple mounting options (wall, ceiling, or floor brackets)

Applications

The FUMEX PR is suitable for a wide range of industries and processes, including:

• Welding and metal fabrication
• Chemical handling and laboratories
• Dust and particle extraction
• Sandblasting and heavy industrial processes
