Ball valve 640ET seriesmanualfor controlfor water
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- manual
- Function
- for control
- Media
- for water
- Material
- stainless steel
- Number of channels
- 3-way
- DN
Max.: 100 mm
(3.937 in)Min.: 15 mm
(0.591 in)- Pressure
16 bar, 40 bar
(232.1 psi, 580.2 psi)
Description

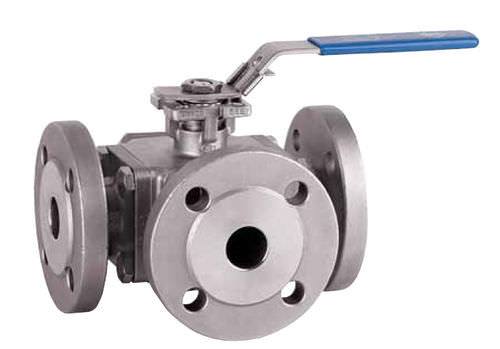

Three-way flanged ball valve made of stainless steel (1.4408)
T-Port
Body top entry design
Bottom and top beared ball design
Full port design
Mixed during actuation
Plate spring forced packing
One-piece ball and stem design
Mounting flange acc. to DIN ISO 5211
Flange dimensions acc. to DIN 2501 / ISO 7005-1 from DN 50
Sealing surface acc. to DIN 2526-C
Flange dimensions acc. to PN40 and ANSI on request
DN 15 – 40, X, I, L down stream on request
DN 15 – 40 female and weldingconnections on request
DN 15 – 40 series 930 mounting kit can be used
