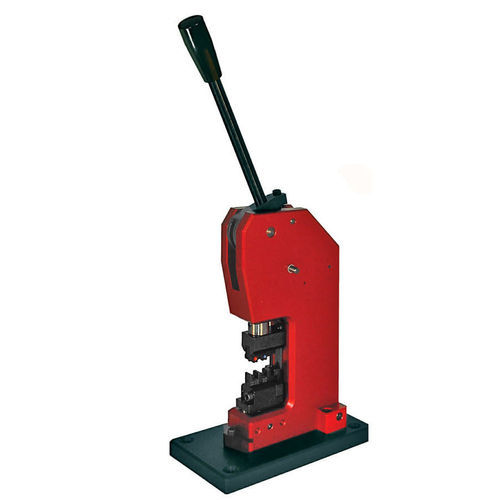

Manual press CR 10

manually-controlledjoiningcrimping

Product overview
Manual toggle press for crimping and joining components with consistent precision and low operator effort.

• Ergonomic operation enabling greater pressing force with minimal muscle effort
• Easy and precise positioning of workpieces in the tools
• Custom tool holder manufacturing available to fit your crimping tools
• Compatible with many tools from different manufacturers
• Interchangeable tool holder for quick tool changes
• Fast and precise adjustment of the tools' closed position
• Integrated return-stroke lock
• Optional stroke counter

Dimension table
1 — 22 mm
2 — 17 mm
3 — 76 mm
Weight — 3 kg

Accessories

• WEZAG
• WEZAG (second variant)
• Mechanical stroke counter
• Tool holder (upper/lower part) for Pressmaster, AMP, etc.

Technical specifications

• Press type: Manual toggle press
• Operation: Manually operated
• Overhang: 22 mm
• Installation height: 76 mm
• Stroke: 17 mm
• Max. press force at lower dead center: 12 kN
• Lever operating force, allowed maximum: 200 N
• Location bore: Ø10 H7
• Clamped piece: Clamping screw
• Direction type: Circular
• Twist-free guide: Twist-free with play ± 0.1 mm
• Hand lever position: Center
• Standard color: Red anodised
• Weight: 3 kg
